MD-S963CG Differential Pressure Sensor for Stairwell Pressurization & Smoke Control Systems
FEATURE
The MD-S963CG residual pressure sensor is a terminal specifically designed for smoke control systems. It is installed in anterooms, stairwells, evacuation corridors, etc., to facilitate fire rescue and personnel evacuation.
This device uses a two-wire bus for power supply and communication, simplifying wiring and saving costs. It uses a high-precision differential pressure sensor combined with mature circuit design, featuring high precision and good stability. The product appearance can be fixed with a standard 86 box, suitable for surface or flush mounting, with strong versatility. The address configuration via DIP switch makes debugging simple and convenient.
APPLICATION
☑Positive pressure air supply system
TECHNICAL PARAMETERS
| Parameter | Value |
| Measuring Range | ±200Pa |
| Overload Capacity | ≤7KPa |
| Accuracy Class | ±1% |
| Output Signal | Two-wire bus |
| Supply Voltage | 24VDC |
| Display | Segment LCD display |
| Product Dimensions | (86*86*30)mm |
| Housing Material | ABS |
| Address Setting | DIP switch setting |
| Operating Temperature | (-10～+55) ℃ |
| Operating Humidity | (0～95%)RH |
| Installation Method | 86-box installation |

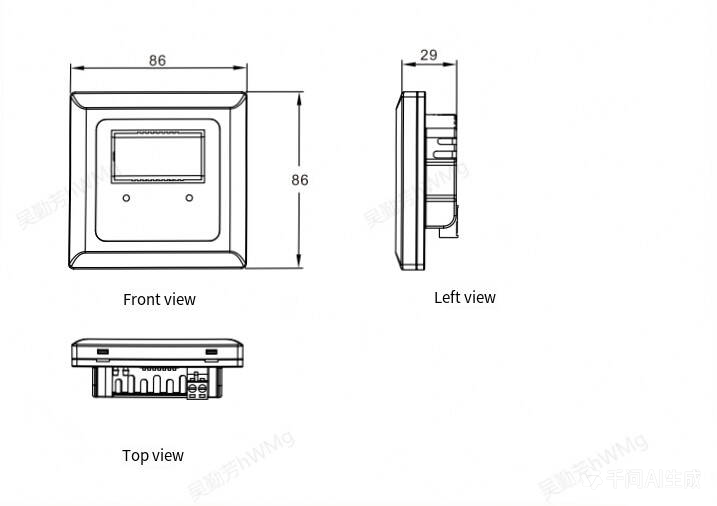

DIMENSION
GUIDE SELECTION
| MD-S963CG | － | ±200Pa | － | 2 | － | P2 |
| Model | Range | Accuracy | Power Supply | |||
| S963CG Residual Pressure Sensor |
±200Pa (-200Pa~200Pa) |
2 (1%FS) | P2 (24V DC) | |||
| Notes: | ||||||
| 1. There may be product selections that do not correspond. Please log in to the company website www.meokon.com for inquiry or consult technical engineers. | ||||||
| 2. The specifications provided in this document represent the technical status at the time of publication. We reserve the right to change specifications and materials without prior notice. | ||||||
