MD-S275L Smart Wireless Level Transmitter (4G/NB-IoT/LoRaWAN) | IP67 Outdoor Remote Level Monitor

Short Description:

☑ Supports multiple wireless communication methods: 4G, NB, LoRa, LoRaWAN
☑ IP67 protection rating, suitable for long-term outdoor use
☑ Remote debugging via DaLanMao platform, on-site Bluetooth debugging, easier device maintenance
☑ Cast aluminum housing, drop-resistant and vibration-resistant, enhanced product protection
☑ Detachable antenna, replaceable with extended antenna for weak signal scenarios
☑ Multi-protocol adaptation, compatible with various custom protocols
☑ Abnormal alarm, supports local device fault alarm
☑ Applications: Fire water systems, domestic water supply networks, water supply pipelines

Send email to us

Product Detail

Product Tags

FEATURE

The MD-S275L Smart Wireless Digital Level Transmitter is a battery-powered, wirelessly communicating outdoor digital level meter. It features IP67 protection and can be used long-term in outdoor pressure pipelines. Powered by a lithium battery (with an external power version available), combined with low-power design, it can meet 2~3 years of normal battery life requirements. It supports mainstream wireless communication methods including 4G, NB, LoRa, and LoRaWAN. Parameters can be configured and firmware upgraded via on-site Bluetooth APP and the remote 'DaLanMao' (Big Lazy Cat) platform, reducing difficulty for construction and maintenance personnel. The mode of scheduled data upload + immediate alarm data upload ensures higher alarm timeliness.

APPLICATION

☑ Fire Water System
☑ Domestic Water Supply Network
☑ Water Supply Network

TECHNICAL PARAMETERS

Model	MD-S275L
Product Name	Smart Wireless Level Transmitter
Measurement Range	0~5M (other ranges available)
Accuracy	±0.5%FS
Output Method	4G, NB, LoRa, LoRaWAN
Installation Method	Submersible
Power Supply	3.6V Lithium Battery / DC24V External Power
Operating Temperature	(-20~65)°C
Protection Level	IP67
Display	LCD Full-Screen
Product Material	Cast Aluminum Housing
Sampling Rate	(1~600) seconds
Working Life	≥3 years (10s sampling, 2h upload)

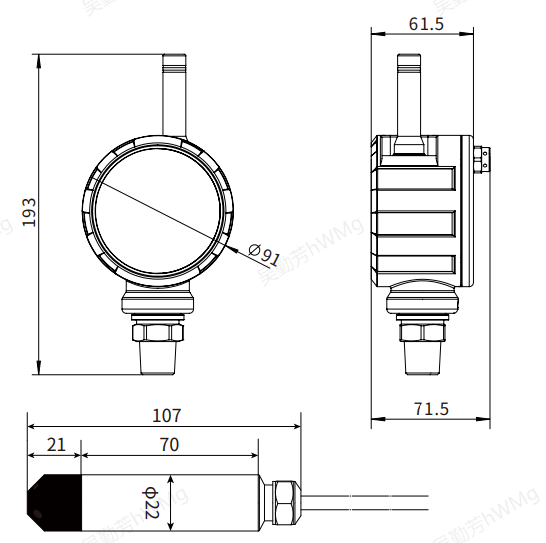

DIMENSION

GUIDE SELECTION

Parameter	Code	Description
Model	S275L	Smart Wireless Level Transmitter
Communication	4G	4G
Communication	NB	NB-IoT
	LR	LoRa
	LW	LoRaWAN
Range	5M	5 meters
Accuracy	1	±0.5%FS
Installation	M0	Submersible
Power Supply	P0	Battery Powered
	P2	24VDC
	P9	Customized Model
Operating Temp	T0	Standard
	T1	-10~60°C
Special Note	K1	*See Note 2 for details
Identification	XXXXXX	Custom Identification Code
