MD-S278 Wireless Digital Pressure Gauge 4G NB-IoT IP65 Industrial Pressure Transmitter with LCD Display Remote Monitoring

Short Description:

☑ 4G, NB communication options available
☑ Dial can rotate 330°
☑Detachable external waterproof antenna
☑ Touch keys
☑Equipped with temperature and humidity monitoring function
☑ Supports quick battery and SIM card replacement design
☑ Supports Bluetooth and remote parameter configuration and firmware upgrade

Send email to us

Product Detail

Product Tags

FEATURE

The MD-S278 Wireless Digital Pressure Gauge features a rotatable large-size circular LCD full-screen display, equipped with a 304 stainless steel sensor connector for easy angle adjustment after on-site installation. Touch keys support power on/off and trigger reporting, with good sealing and long service life. Built-in temperature and humidity sensor provides temperature and humidity monitoring capability. The product is powered by a lithium battery with ultra-low power consumption and long battery life. Supports 4G or NB wireless transmission; parameters can be configured and firmware upgraded via on-site Bluetooth APP and remote 'Da Lan Mao' (Big Lazy Cat) system, reducing installation and maintenance difficulty; adopts a timed data upload + immediate alarm data upload mode for higher alarm timeliness.

OPERATING ENVIRONMENT

Ambient Temperature: -20~65 ℃
Relative Humidity: (0~100%) RH (no condensation)
Storage Temperature: -10~50 ℃

APPLICATION

◇ Fire Protection Water System
◇ HVAC System
◇ Smart Water Management
◇ Heating Pipeline Network

TECHNICAL PARAMETERS

Range	*See Selection Guide
Accuracy	±0.5%FS
Output Method	4G/NB/LoRa/LoRaWAN
Installation Thread	*See Selection Guide
Power Supply	3.6V Lithium Battery
Operating Temperature	(-20~65)°C
Data Configuration	Bluetooth Config, Remote Config
Alarm Settings	Low Alarm, High Alarm, Fluctuation Report, Low Battery Alarm
Connector Material	304 Stainless Steel
Overload Pressure	200%FS
Upload Interval	10~1440 minutes adjustable
Electrical Protection	Anti-EM Interference
Sampling Rate	Default 10 seconds, 1~60 seconds/time adjustable
Display	LCD Liquid Crystal Display

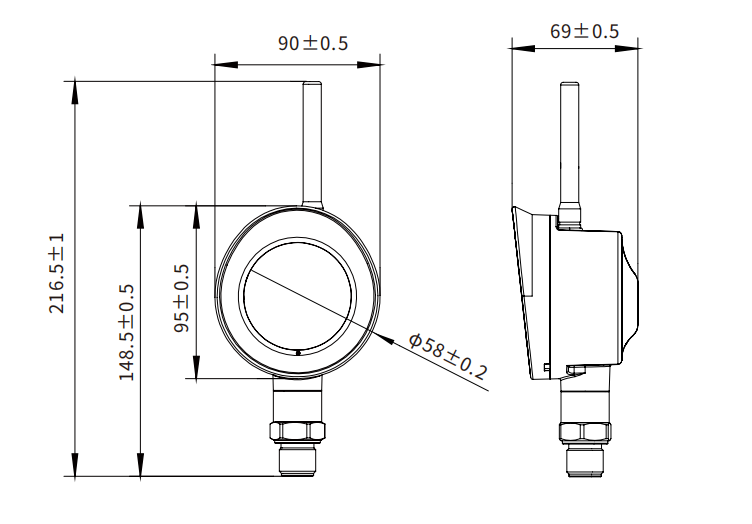

DIMENSION

Selection Guide

Field	Code	Description
Model	S278	Wireless Digital Pressure Gauge
Communication	4G	4G (4G)
	NB	NB (NB)
	LR	LoRa (LoRa)
	LW	LoRaWAN (LoRaWAN)
Accuracy	1	1 (±0.5%FS)
Range	2.5M	2.5MPa
	*See table below	*See table below
Installation Thread	G12	G12 (G1/2)
	*See table below	*See table below
Power Supply	P0	Battery Powered
	P2	24VDC
Operating Temp	T0	Standard
	T1	(-10~60℃)
Special Note	K0	None
	K1	Oxygen Measurement
	K2	Hydrogen Measurement
	K3	Zinc & Copper Free
	K4	Acid Measurement (Non-HF)
	K5	With Heat Sink
	K6	Fluorine Coating
	K9	Special Customization
Identification	XXXXXX	Identification Code

Pressure Range Selection

Type	Standard (MPa/kPa)	US Standard (PSI)	European Standard (bar)	Remarks
Super High Pressure	0-10/16/25/40/60/70 MPa			1) The above ranges are standard ranges. For custom ranges, please contact Meokon technical engineers. 2) Special Notes: K0 (None) K1 (Oxygen Measurement) K2 (Hydrogen Measurement) K3 (Zinc & Copper Free) K4 (Acid Measurement, Non-Hydrofluoric Acid) K5 (With Heat Sink) K6 (Fluorine Coating) K9 (Special Customization)
High Pressure	0-0.1/0.16/0.25/0.4/0.6/1/1.6/2.5/4/6 MPa	0-1500/3000/5000/10000	0-100/250/400/700
Medium Pressure	0-10/16/25/40/60 kPa	0-30/50/100/300/500/1000	0-1/2.5/4/6/10/25/40/60
Low Pressure		0-3/5/15	0-0.1/0.25/0.4/0.6
Micro Pressure		/	/
Absolute Pressure	100/160/250/400/600 kPa 0-1/1.6/2.5 MPa	0-15/30/100/500	1/2.5/4/6/10/25
Negative Pressure	(-100-0) kPa	(-15-0)	(-1-0)
Compound Pressure	(-10~10)/(-25~25)/(-40~40)/(-60~60)/(-100-100) kPa (-100-250)/(-100-400)/(-100-600) kPa (-0.1-1)/(-0.1-1.6)/(-0.1-2.5) MPa	(-1-1)/(-3-3) (-5-5)/(-15-15) (-15-100)/(-15-300)	(-0.1~0.1)/(-0.25~0.25)/(-0.4~0.4) (-0.6~0.6)/(-1-1)/(-1-2.5)/(-1-4)/(-1-6) (-1-10)/(-1-25)
Differential Pressure	/	/	/
