MD-S102 FOGE SMART PRESSURE TRANSMITTER
Features:
The series features a compact structure and digital circuit design, resulting in a smaller form factor, easier installation, and improved electrical compatibility. This pressure transmitter is specifically engineered for variable frequency water supply applications in water supply systems. Its specialized anti-frequency-conversion interference circuit ensures stable output signals and enhanced long-term durability.
Technical Parameters:
- Anti-frequency interference design, particularly suitable for use
- with inverters and variable frequency pumps
- Good long-term stability and high accuracy
- Diffused silicon sensor is used as pressure sensitive element with high sensitivity
- 304 stainless steel, Horseman connector
Application:
· Variable frequency water supply
· Machinery and equipment
· Water pipe network
· Automated production line
Technical Parameters:
| Range | See the table below for range selection |
| Response times | ≤5ms |
| Display accuracy | ±0.5%FS |
| Power | 12~28V |
| Overload pressure | ＜10MPa200% ≥10MPa150% |
| Long-term Stability | Better than 0.25% FS/year |
| Output | 4-20mA |
| Electrical protection | Anti reverse connection protection and anti frequency conversion interference design |
| Measuring medium | Gas or liquid incompatible with 316L stainless steel |
| Threaded interface | See the table above for thread selection |
| Material | 304 stainless steel |
| Protection level | IP65 (Hosman) |
| Temperature | (-20~80)°C |

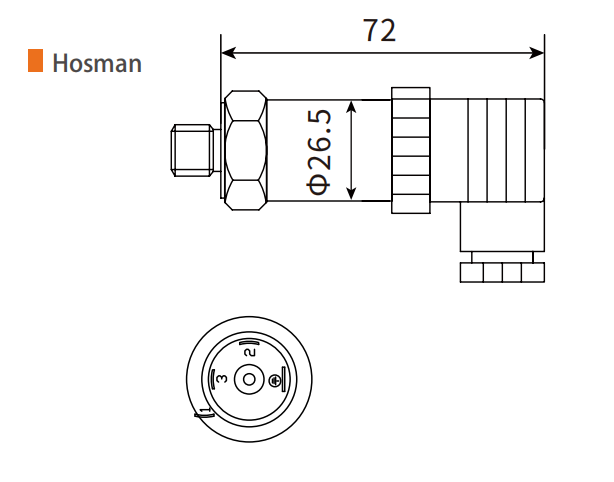

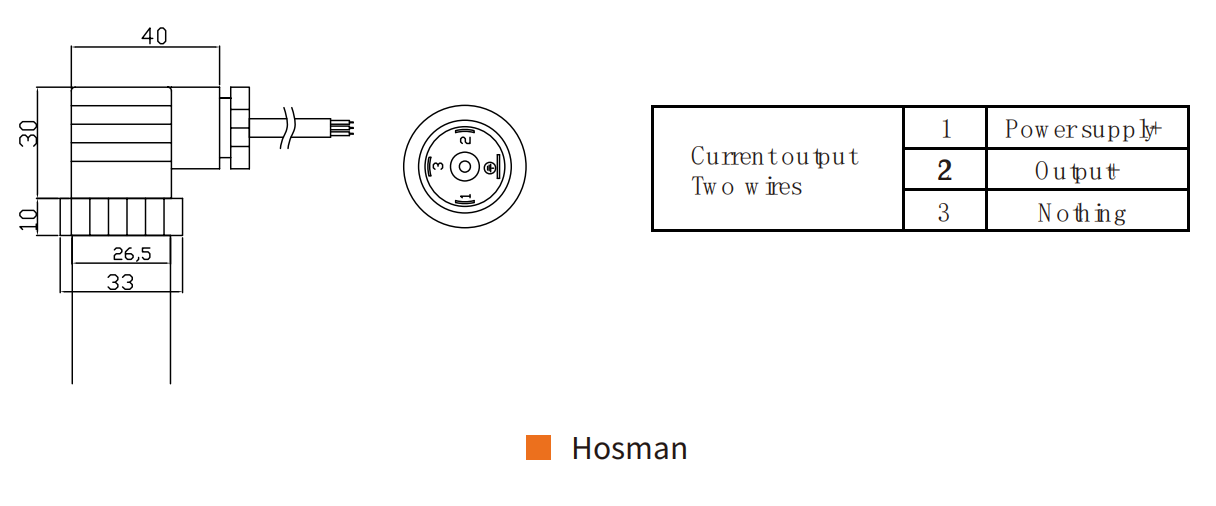

Dimension:
 |
 |
