MD-S101 0.05%FS PRESSURE TRANSMITTER WITH 4-20mA output
Features:
The high-precision pressure transmitter employs imported monocrystalline silicon sensors as pressure sensing elements, combined with wide-temperature-range compensation, delivering excellent temperature stability and multi-point linearity correction to ensure product accuracy and precision. It utilizes instrument-grade amplifiers with strong anti-interference capabilities, and the housing is made of 316L stainless steel for enhanced corrosion resistance, making it suitable for various harsh working conditions. This series of products is designed for applications requiring high measurement accuracy, long-term stability, and strong anti-interference performance.
Technical Parameters:
· The basic accuracy reaches 0.1 grade, including the effects of linearity, hysteresis, and repeatability
· Supports optional 4-20mA or RS485 signal output
· Equipped with built-in zero calibration, it facilitates on-site rapid calibration and simplifies the installation and debugging process
| Range | See the table above for range selection |
| Power supply | DC 9~30V (4-20mA) / DC 12~30V |
| Accuracy | 0.1%FS, 0.05%FS |
| Output | 4-20mA / RS485 |
| Process connection | See the following table for connection selection |
| Wiring Method | Husman connector / M12 * 1 aviation plug / straight out |
| Electrical protection | Anti-reverse connection protection, short circuit protection, overvoltage protection |
| Long-term stability | ≤0.1%FS/Year |
| IP rate | IP65 |
| Operating temperature | (-20~80)℃ |

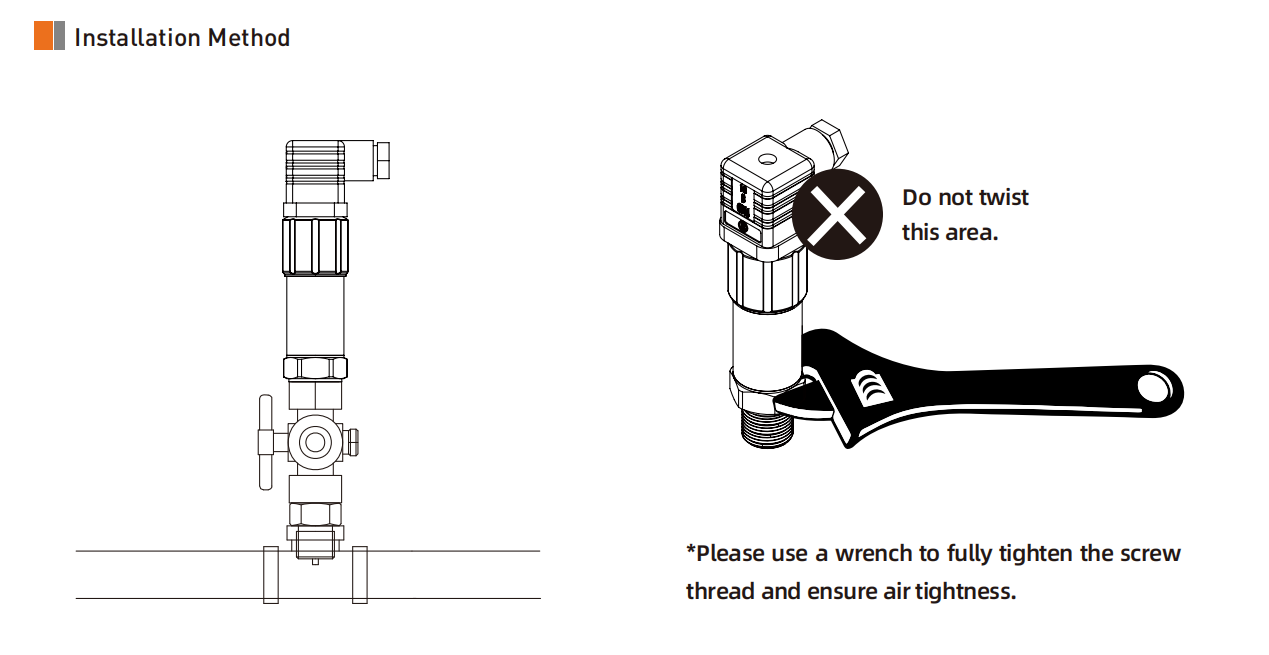

Application:

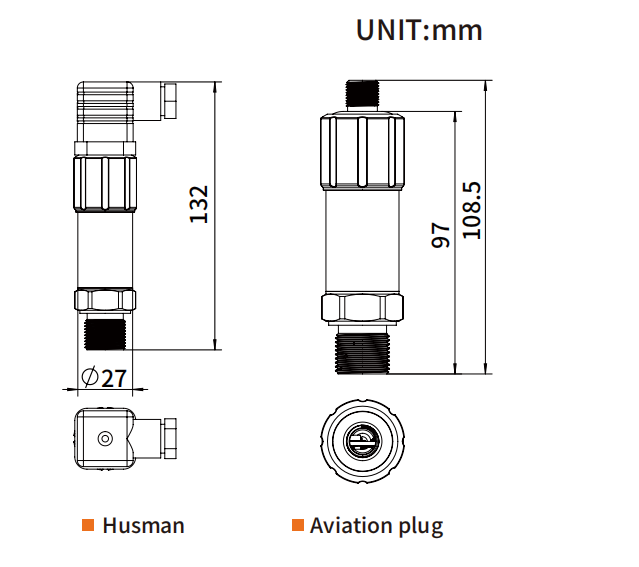

Dimension:
