MD-S853TF Electronic Digital Temperature Switch(Split-type)
Features:
The MD-S853TF is a digital temperature switch with an OLED display designed for temperature measurement applications. Featuring a 304 stainless steel housing and a plastic sensor head, it meets IP65 protection standards and is suitable for harsh environments. Its rotating mechanism allows adjustable screen orientation.
Technical Parameters:
· 304 stainless steel housing with IP65-rated structural design
· Rotating structure for quick screen orientation adjustment
· OLED screen design with wide viewing angle and high resolution
· Dual-channel alarm light with multifunctional button design
Application:
· Machine Tool Drive Moni- toring
· High-speed Railway
· Heating Pipeline
· Automatic Control Equipment
· Other Applications Replacing Mechanical Switches
· Automated Production Line
Technical Parameters:
| Range | （0~ 100)℃ |
| ACC | ± 0.5% FS |
| Output | 2D1A (two switch signals + 4~20 mA output) |
| Thread connection | G12 |
| Power | 12~28V |
| Electrical connections | M12X1 connector |
| Response Time | 50ms |
| Electrical protection | Reverse Polarity Protection, Electromagnetic |
| Load Current | <200mA |
| Display Type | OLED screen |
| Connecton Material | 304 Stainless Steel |
| Body Material | 304 Stainless Steel |
| Protection Grade | IP65 |
| Operating temperature | (-20~65)°C |

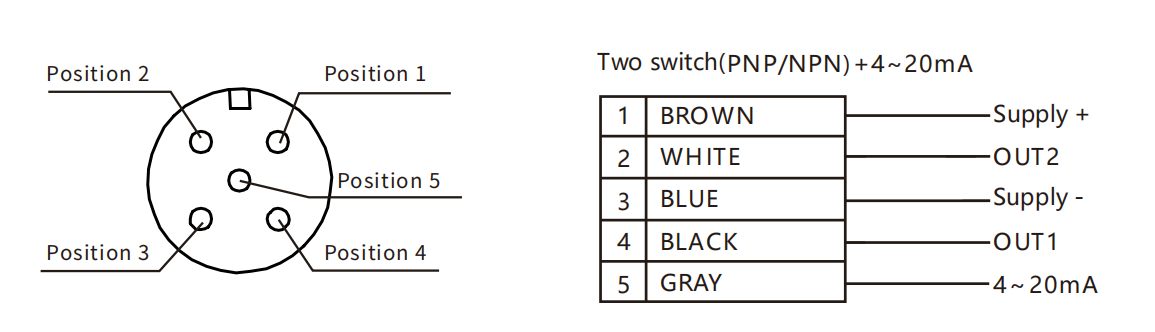

Wiring Diagram:

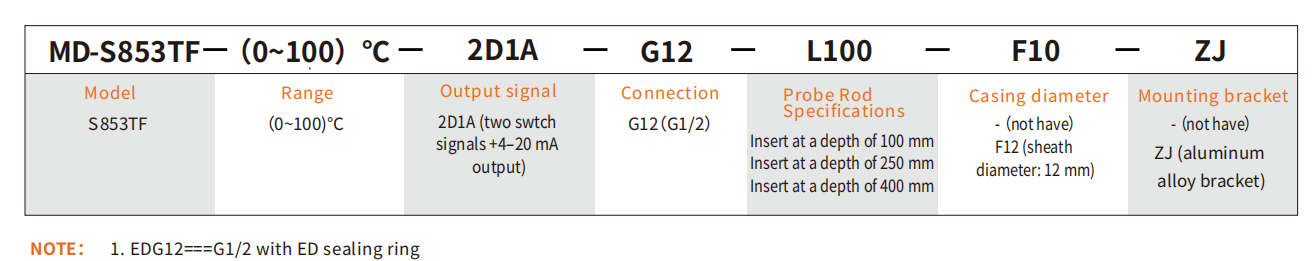

Selection Guide
