MD-S853TL Electronic Digital Display Temperature & Level Integrated Switch
Features:
The MD-S853TL is an integrated switch with a digital display head that combines liquid-level and temperature-measurement functions. Designed for harsh industrial environments including hydraulic systems, lubrication equipment, and machine tool automation, this unit features a stainless steel housing paired with a plastic display head and an IP67 ingress protection rating. Integrating liquid level and temperature monitoring into a single device, it delivers outstanding anti-interference performance and flexible configuration options, offering high cost-effectiveness and exceptional reliability. Built-in Bluetooth enables convenient remote commissioning and parameter configuration.
Technical Parameters:
- Remote Management
Bluetooth wireless commissioning supports wireless parameter setup; real-time parameter adjustment and data viewing are available anytime.
- Intelligent Display
High-definition LED digital screen for real-time data readout.
- Reliable Protection
IP67 dustproof and waterproof rating, suitable for severe working conditions.
- Stable Data Output
Class II national standard or higher performance, ensuring stable data acquisition under complex industrial electromagnetic interference environments.
Application:
Hydraulic station oil tanks
Hydraulic modules for modular machine tools
Hydraulic units for construction machinery (excavators, cranes)
Hydraulic lubrication systems
Industrial automated production lines
Operating Conditions:
Operating Temperature: -20℃ ~ 65℃
Relative Humidity: 0 ~ 95% RH (non-condensing)
Storage Temperature: -30℃ ~ 70℃
Technical Parameters:
| Item | Parameter | Performance Advantages |
| Range | 0–1m (Optional, Customizable) | Measuring range adaptable to various application scenarios |
| Accuracy | ±10mm | Ultra-small error of only 1 cm |
| Temperature Measuring Range | -20…100°C (Configurable) | Measuring range adaptable to various application scenarios |
| Temperature Accuracy | ±1°C | Minimal error for precise monitoring & control |
| Power Supply | DC 18…30V | Standard industrial power supply for easy installation & operation |
| Probe Material | 304 SS | Impact-resistant & deformation-proof probe connector |
| Parameter Configuration | Bluetooth Configuration or Remote Configuration | Remote management via Bluetooth connection for easy commissioning |
| Ingress Protection Rating | IP67 | Fully dust-tight; protected against temporary water immersion |
| Output Signal | 4D 2A (4-channel switching output NPN/PNP + 2-channel 4~20mA output) | High-end standard configuration; Bluetooth communication optional |
| Operating | Temperature -20~80°C; Humidity 0~95% RH (Non-condensing) |
Stable operation under extreme cold and high heat environments |

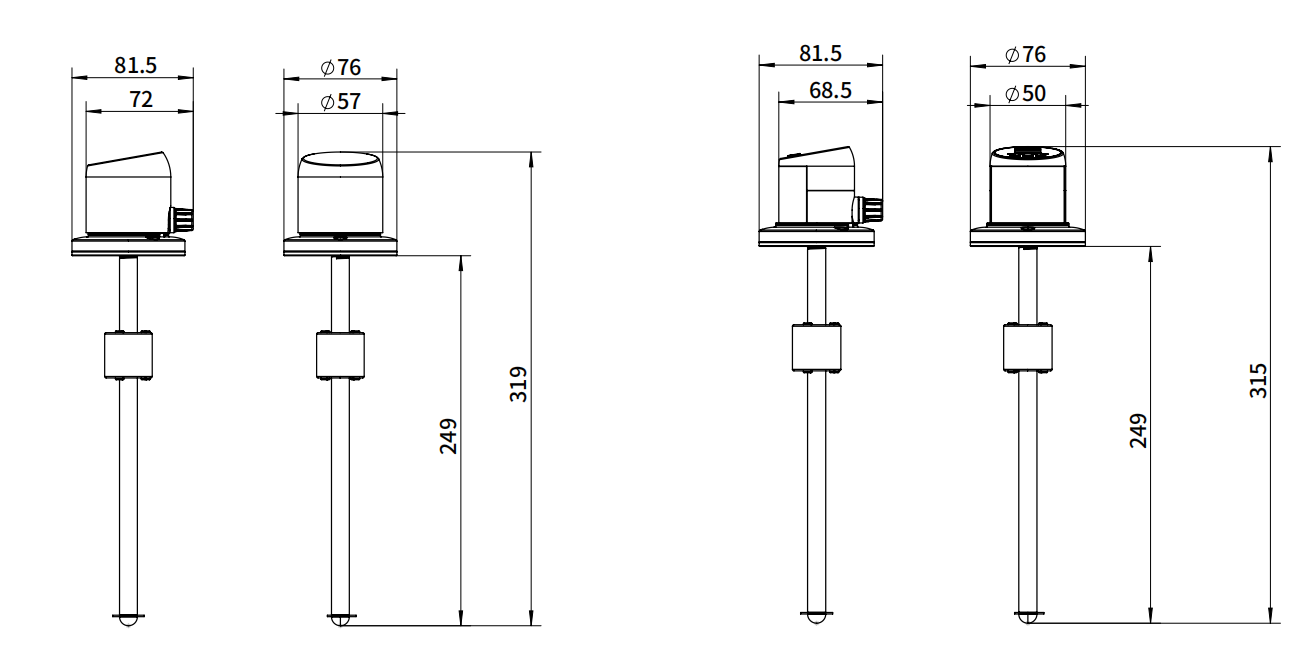

Dimension:
