MD-S961SY Wireless Anemometer with S-Type Pitot Tube, 4G/NB-IoT/LoRa Air Velocity & Flow Meter
FEATURE
MD-S961SY integrated wireless anemometer is a pipeline wind speed measuring instrument. It is equipped with an S-type Pitot tube, self-designed mounting bracket and IP67-rated housing, which can be used both indoors and outdoors. It measures wind speed and air volume in gas pipelines simultaneously, making it an ideal measuring device for environmental monitoring stations, laboratories, medical and health industries, building HVAC, ventilation ducts, flues and clean rooms. The matched Pitot tube enables direct reading of wind speed, air volume and wind pressure.
This product series features powerful functions. It supports remote parameter configuration via mobile Bluetooth and cloud platform, including sensor sampling rate, data upload interval, high/low pressure alarm thresholds and other parameters. Bluetooth positioning is also available to upload equipment location data.
APPLICATION
Smoke Control System
HVAC Ductwork
Air Supply System
Laboratory
TECHNICAL PARAMETERS
| Wind Speed Range | 0~40m/s |
| Air Volume Range | 0~9999m3/s |
| Accuracy Class | 2%FS |
| Long-term Stability | Better than 0.5%/year |
| Operating Temperature | -20~80℃ |
| Power Supply | 3.6V Lithium Battery |
| Sampling Rate | Default 10s, 1~60s/time adjustable |
| Upload Rate | 10-1440 minutes adjustable |
| Alarm Method | Low Alarm, High Alarm |
| Alarm Value Setting | 10%~90% of Range |
| Alarm Upload Rate | 3-1440 minutes |
| Alarm Sampling Rate | 1-60s adjustable |
| Display | LCD Display |
| Interface Type | 8mm S-type Pitot Tube |
| Connector Material | 304 Stainless Steel |
| Housing Material | Cast Aluminum Housing |
| Measured Medium | Gas |
| Protection Rating | IP67 |
| Product Accessories | Fixed Self-tapping Screws |

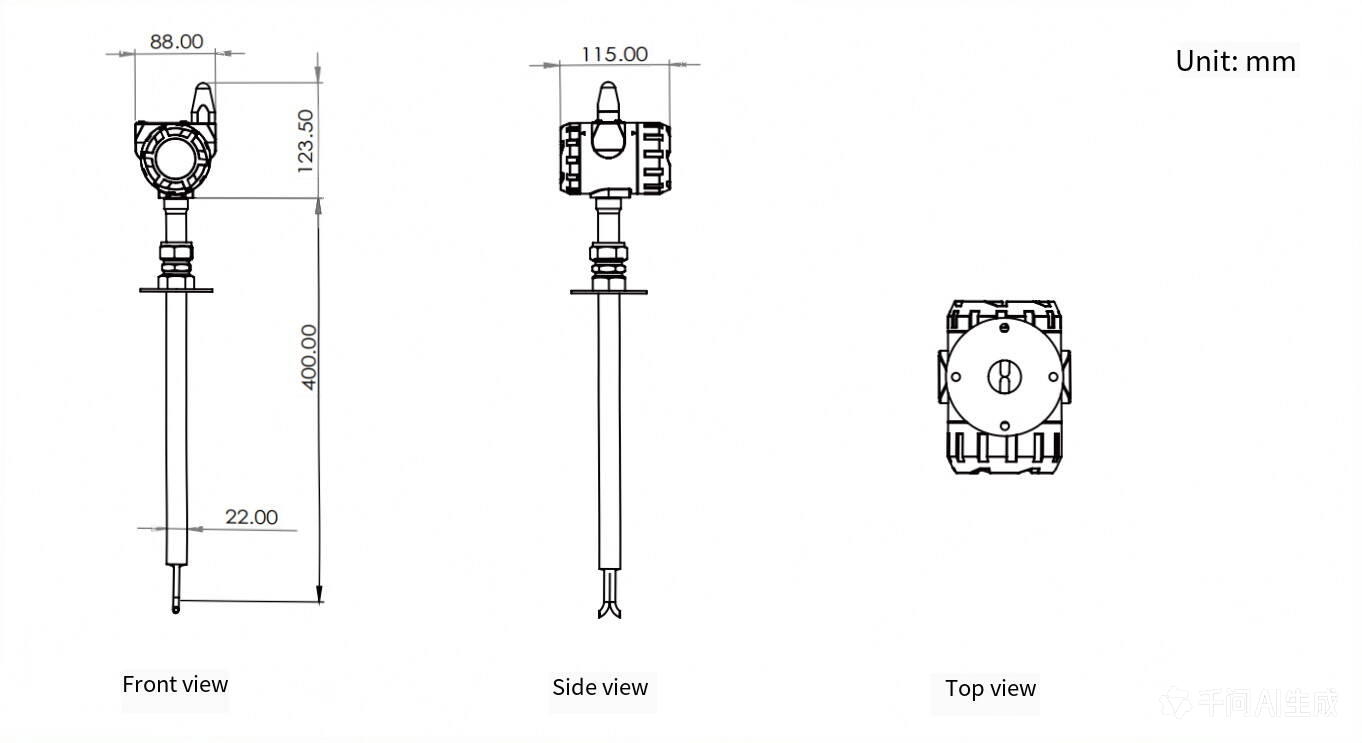

DIMENSION
