MD-S907 Industrial IoT Data Monitoring Controller | 4G/NB-IoT Remote Monitoring & Multi-Channel Control Device
FEATURE
The MD-S907 series features efficient control and monitoring capabilities. With 4 control channels and multi-channel feedback, it enables remote operation of water pumps and fans, and reports control status to allow customers to monitor equipment operation in real-time.
The series is powered by AC220V or DC24V, suitable for a wide range of industrial applications.
To ensure the reliability and stability of remote control, the device adopts two communication methods: 4G and RS485. 4G technology provides high-speed and stable data transmission, enabling remote control and timely feedback. RS485 offers strong anti-interference capabilities, suitable for industrial environments and long-distance transmission.
APPLICATION
☑Water Pump Control
☑Fan Control
☑Automated Production Lines
TECHNICAL PARAMETERS
| Description | Value |
| Product Model | MD-S907 |
| Product Name | IoT Data Monitoring Device |
| Operating Temperature | -10~60℃ |
| Operating Humidity | ≤95%RH (Non-condensing) |
| Relay Output | None / 4 Channels |
| Relay Input | 4 Channels / 8 Channels (AC220V & Dry Contact) |
| Analog Input | None / 4 Channels |
| Power Supply Voltage | AC220V / DC24V |
| Communication Method | 4G / NB / RS485 |
| Product Dimensions | 70×90×175mm |
| Housing Material | ABS Material |

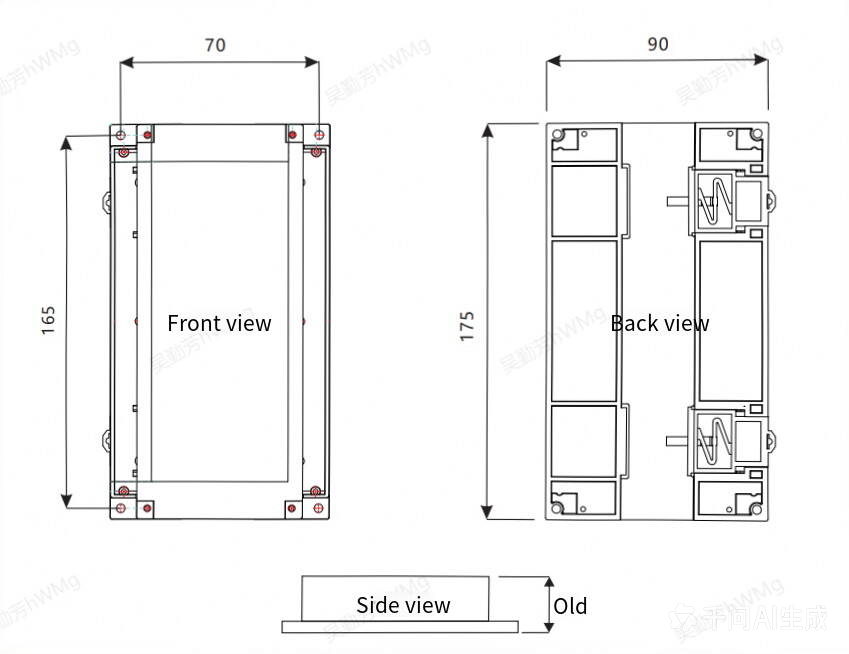

DIMENSION
