MD-K982P Smart Manhole Cover Sensor – IP68 Waterproof Tilt & Water Level Monitor with NB-IoT/4G

Short Description:

  • Ultra-low power design, powered by a lithium battery with a battery life of up to 2–3 years.
  • Supports NB wireless transmission mode
  •  Lid-open alarm / Movement alarm / Overflow alarm
  • Compact in size, easy to install, and suitable for various manhole covers.
  • Nylon material, ultra-strong corrosion resistance
  • IP68 waterproof design, suitable for long-term use in harsh underwater and underground conditions.
  •  Simulates actual operating conditions, uses XYZ modeling, and is paired with motion sensors to reduce false alarm rates.


Product Detail

Product Tags

FEATURE

The manhole cover status monitor can effectively track the status of various sewer manhole covers, providing alerts for unauthorized movement, overflow, and cover opening. It features a built-in water-level sensor that promptly detects manhole overflows. The device supports both scheduled data uploads and event-triggered uploads, striking a balance between timely alerts and product longevity. This compact device significantly reduces the likelihood of damage when the manhole cover is forcibly opened. It comes standard with an installation bracket, making it compatible with different types of manhole covers and simplifying the installation process.

OPERATING ENVIRONMENT

  • Operating temperature: (-10–60)℃
  • Relative humidity: (0~95%)RH (no condensation)
  • Storage temperature: (-25~70)℃

APPLICATION

Manhole covers for municipal, water supply, power, and telecommunications networks

TECHNICAL PARAMETERS

Item Parameter/Description
Output Method 4G / NB-IoT
Power Supply 3.6V Lithium Battery
Installation Method Wall-mounted
Tilt Measurement Angle 0~180°
Response Time < 3s
Alarm Function Manhole cover displacement alarm, overflow alarm
Service Life Not less than 3 years under normal use
Data Configuration Bluetooth configuration or remote configuration
Static Power Consumption 0.5W
Housing Material Nylon
Protection Rating IP68
Operating Temperature (-10~60) ℃

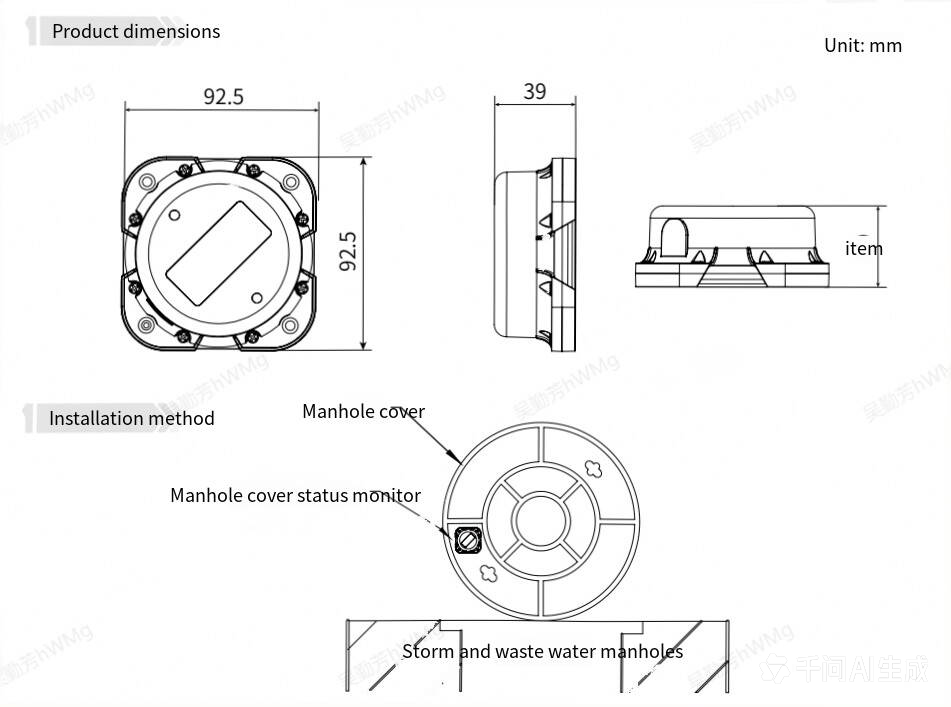

DIMENSION

K982 size
