MD-K955 Wireless Smart Fire Hydrant Monitoring Terminal with Pressure & Tilt Sensors (4G/NB-IoT/LoRa)
FEATURE
The MD-K955 Wireless Smart Fire Hydrant Terminal is a wireless intelligent monitoring device with multiple functions. It innovatively combines a wireless pressure sensor with a smart fire hydrant valve cap. Without altering the original appearance of the hydrant, it realizes various safety monitoring functions, including positioning, real-time water pressure monitoring, hydrant tilt monitoring, and water discharge monitoring. The product features easy installation, high cost-performance ratio, and convenient subsequent operation and maintenance.
APPLICATION
Outdoor Fire Hydrants
TECHNICAL PARAMETERS
| Range | 0~2.5 MPa |
| Accuracy | ±0.5% FS |
| Output Method | 4G/NB-IoT/LoRa |
| Installation Thread | G1/4 |
| Power Supply | 3.6V Lithium Battery |
| Installation Method | Wireless communication terminal replaces the original valve cap; Pressure sensor replaces the fire hydrant valve disc |
| Overload Pressure | 200% |
| Functions | High/Low Pressure Alarm, Tilt Alarm, Water Discharge Alarm, Impact Alarm |
| Firmware Upgrade | Via Mini-program, APP, or Remote Configuration |
| Data Configuration | Via Mini-program, APP, or Remote Configuration |
| Housing Material | Pressure Sensor (Stainless Steel); Wireless Transmitter Terminal (Nylon) |
| Accessories | Fire Hydrant Valve Disc |
| Protection Class | IP68 |
| Operating Temperature | -20°C to 65°C |

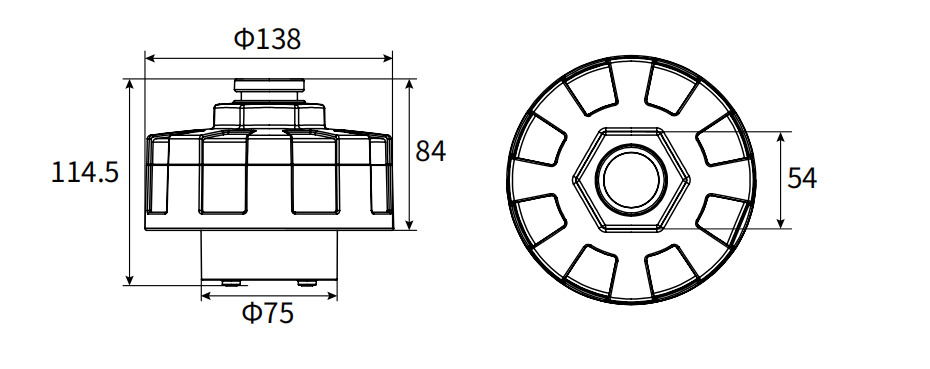

DIMENSION
GUIDE SELECTION
| MD-K955 | 2.5M | 1 | 4G | G14 | P0 | T2 | XXXXXX |
| Model | Range | Accuracy | Communication | Thread Code | Power Code | Temp Code | ID CODE |
| K955 Wireless Smart Fire Hydrant Terminal |
2.5M (0~2.5 MPa) | 1 (±0.5% FS) | 4G (4G) LR (LoRa) NB (NB-IoT) |
G14 (G1/4) | P0 (Battery Powered) | T2 (-20~65°C) |
