MD-K933 Wireless Radar Level Transmitter for Sewer & Manhole Monitoring (4G/NB-IoT)
FEATURE
Wireless Radar Level Meter is a high-precision, high-reliability level monitoring device designed for demanding operating environments.
The device features a corrosion-resistant enclosure and a separate radar sensor, providing a measurement range of up to 10 m. With an ultra-narrow 8° beam angle, it ensures stable and reliable measurements even in confined or challenging installation conditions.
Designed for long-term operation, the MD-K986 offers extended battery life, high data transmission reliability, and is easy to install, configure, and maintain. With an IP68 protection rating, it is ideally suited for harsh environments such as stormwater drainage networks, manholes, rivers, canals, and lakes, making it an excellent solution for water level monitoring and urban flood management.
APPLICATION
- Stormwater Drainage Networks
- Manholes
- Rivers, Streams, Small Watersheds, and Lakes (Water Level Monitoring Applications)
TECHNICAL PARAMETERS
| Measuring Range | 0~10 m |
| Accuracy | ±2 mm |
| Communication | 4G / NB-IoT |
| Power Supply | Lithium Battery |
| Blind Zone | Blind Zone ≤30 mm |
| Beam Angle | ≤8° |
| Battery Life | ≥3 years (15min collection, 2h upload) |
| Radar Frequency | 60 GHz |
| Material | 304 SS probe with Nylon housing |
| Protection Rating | IP68 |
| Parameter Setting | Bluetooth Mini-program + Remote Platform |

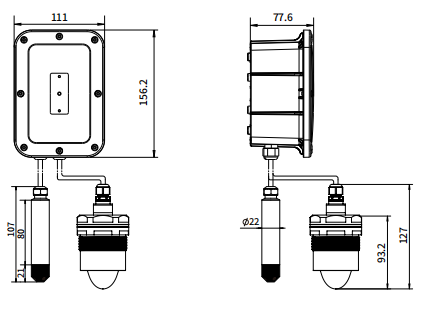

DIMENSION
GUIDE SELECTION
| MD-K933 | 10m | 18 | 4G | D1 | P0 | T3 | xxxxxxx |
| Model | Range | Accuracy | Communication Method | Installation Method | Power | Operating Temperature | Identification Code |
| K933 Wireless Radar Level Gauge |
10 m (10mH₂O) | 18 (±2mm) | 4G(4G) | D1 (Wall-mounted) | P0 (Battery Powered) | T3 (-20~80°C) | |
| NB(NB-IoT) |
NOTE:There may be product selections or certifications that cannot be matched. Please consult a Mingkong technical engineer, and their communication reply shall prevail
