Intelligent air quality monitoring terminal MD-S972
Features:
The MD-S972 Intelligent Air Quality Monitoring Terminal is an air quality monitoring device suitable for scenarios such as stadiums, underground garages, subways, and buildings. It comes with standard monitoring for 6 parameters: temperature, humidity, PM2.5, PM10, CO₂, and TVOC. Additionally, it supports optional monitoring for gases such as CO, alcohol, and formaldehyde. The device adopts a 4.3-inch TFT color screen, which can support simultaneous monitoring of up to 8 types of gases on the same screen.
The gas information data collected by the device will be uploaded via wireless signals to the cloud platform management center. In addition, the device supports parameter configuration modification through WeChat Mini Program, as well as remote OTA upgrade and remote configuration. The MD-S972 Intelligent Air Quality Monitoring Terminal will provide customers with convenient operation and reliable monitoring services.
Application:
- Smart Buildings
- Underground Garages
- Rail Transit Systems
- Indoor Environments
Technical Parameters:
| Parameter | MD-S972 |
| Material | ABS |
| Power Supply Voltage | External 12~28V power supply + USB type-c power supply |
| Dial Display | 4.3-inch TFT color LCD screen display |
| Sampling Rate | Default is 4 seconds, adjustable from 4 to 9999 seconds per interval. |
| Upload Rate | 3-1440 minutes (configurable) |
| Communication Method | 4G, NB (customized) |
| Measurement Range | Full range configurable |
| Configuration & Upgrade | Bluetooth configuration, remote configuration, remote upgrade |
| Alarm Mode | High/low alarm, cover opening alarm, main power disconnection alarm, low battery alarm, sensor abnormality alarm |
| Operating Temperature | -10~60°C |
| Operating Humidity | ≤95%RH (no condensation) |
| Accessories | Power adapter, spare screws and cable ties, expansion screw accessories |

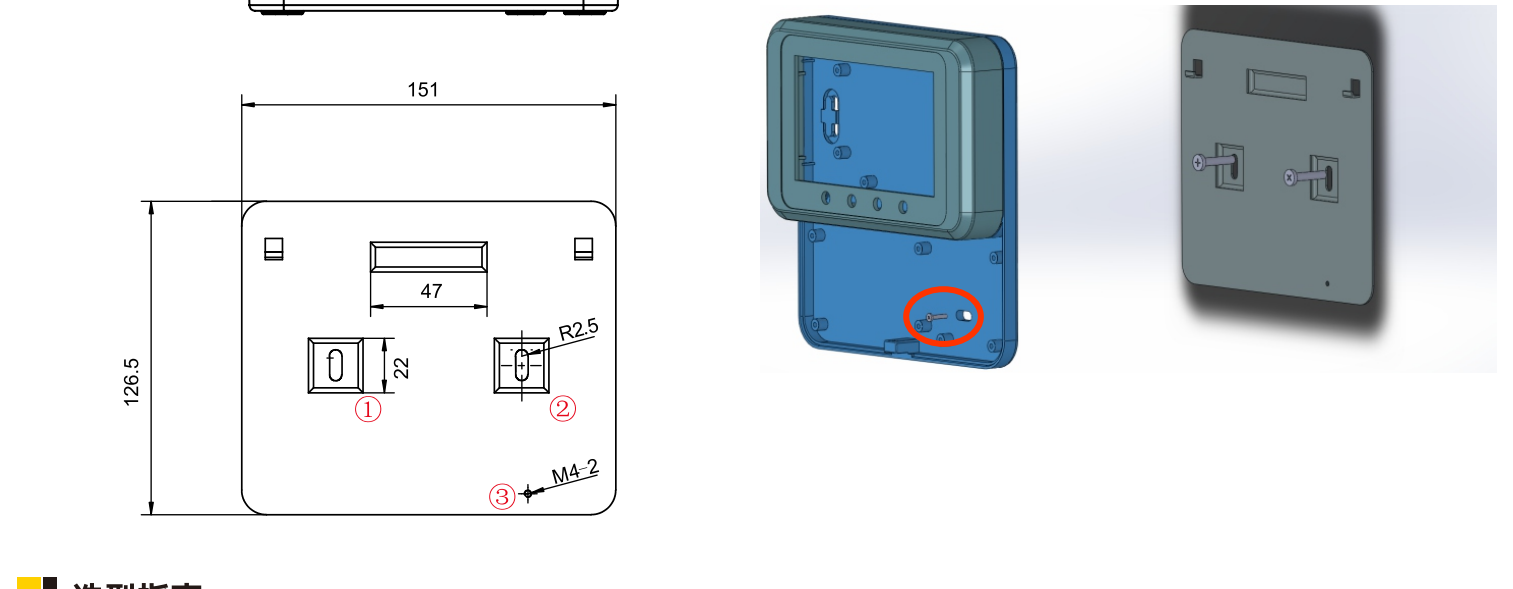

| Installation Method | Wall-mounted type with anti-tamper screws. |
