MD-S261 Smart Datalogger digital pressure gauge with 65mm

Short Description:

Range: as tech parameters
Acc: ±0.5%FS、±0.2%FS
Output: Bluetooth output
Threaded interface: as tech parameters
Power: 3.6VDC lithium battery (Type-C charging)
5-digit LCD (black background with white text)
Thread material: 304 stainless steel
Data configuration: Bluetooth configuration
Data storage: Can store multiple records, each record can hold up to 1 million pieces of data
Dial size: 2 inches
Protection rate: IP65
Temperature: (-10~60)°C

Product Detail

Product Tags

Features:

The Smart Digital Pressure Gauge is a compact and precise pressure measurement device designed for portable use. Featuring a dual-screen design, the main screen displays real-time pressure data, while the secondary screen can switch to show temperature, humidity, maximum, and minimum values. With a protection rating superior to IP65, the device is powered externally via a Type-C interface and includes Bluetooth functionality for quick and convenient debugging and parameter configuration. It is primarily suitable for applications such as inspection instruments and calibration devices.

Technical Parameters:

High-capacity storage
• Full-screen design
• Remote management
• Low power consumption

Range	as tech parameters
Display accuracy	±0.5%FS、±0.2%FS
Output	Bluetooth output
Threaded interface	as tech parameters
Power	3.6VDC lithium battery (Type-C charging)
Screen display mode	5-digit LCD display (black background with white text)
Joint material	304 stainless steel
Data configuration	Bluetooth configuration
Data storage	Can store multiple records, each record can hold up to 1 million pieces of data
Dial size	2 inches
Protection level	IP65
Temperature	(-10~60)°C

Dimension:

• Portable pressure measuring equipment
• Pressure monitoring instruments
• Pressure vessels
• Supporting pressure instruments and meters

Applications:

• Portable pressure measuring equipment
• Pressure monitoring instruments
• Pressure vessels
• Supporting pressure instruments and meters

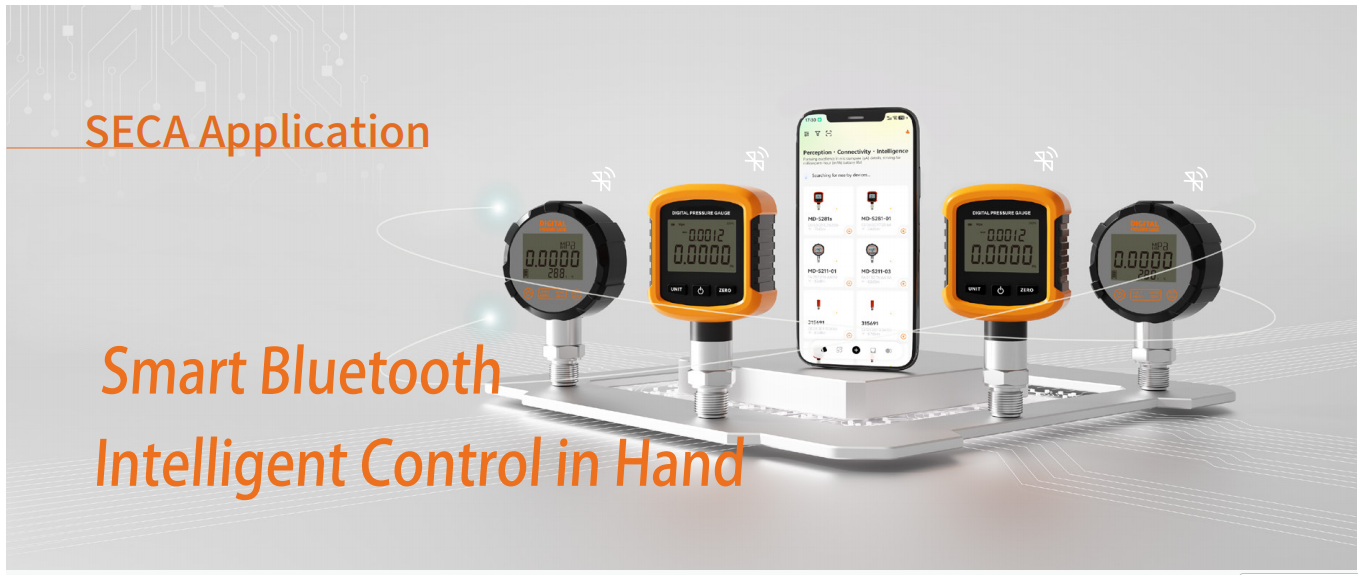

SECA Application:

SECA is a dedicated application software for device connection and configuration. Compatible with both Android and iOS systems, SECA offers a seamless experience for device debugging and setup.
Additionally, SECA enables users to group multiple devices for simultaneous real-time data monitoring, simplifying device management and facilitating data comparison.
Key features include:
• Intuitive user interface
• Comprehensive data dashboard
• Customizable curve reports
• Data export functionality
• Multi-language support
• Software-controlled device logging
