IP68 0-10M MD-S421 Radar level sensor with RS485
Features:
This radar level gauge is a high-precision, high-reliability level monitoring product suitable for harsh environments. The product features a stainless steel housing and radar probe, a 10-meter range, and an 8° ultra-small beam angle, ensuring data stability even in demanding conditions. It boasts high data stability, is easy to install and maintain, and has an IP68 protection rating, making it particularly suitable for various harsh environments such as drainage networks, manholes, rivers, and lakes.
Technical Parameters:
RS485 transmission method
Bracket mounting, wall-mounted, simple and convenient, flexible and quick deployment
Beam angle ≤8°, range 0~10 meters, dead zone ≤30mm
Corrosion-resistant materials, IP68 protection rating
High data stability, strong anti-interference capability
Application:
- Drainage pipe network
- Manholes
- Liquid level monitoring of rivers, small watersheds, and lakes
Technical Parameters:
| Range | 0-10m |
| Accuracy | ±2m |
| Output | RS485 |
| Power | 5VDC |
| Cable | Straight out |
| Blind Zone | ≤30mm |
| Radar Frequency | 60GHz |
| Material | 304 Stainless Steel Probe |
| Protection Rating | IP68 |
| Beam Angle | ≤8° |

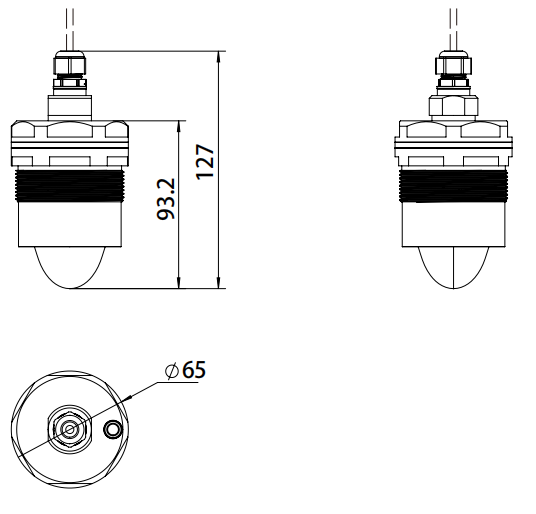

Dimension:
