In modern HVAC (Heating, Ventilation, and Air Conditioning) systems, safety is not an afterthought—it is engineered into every layer of control. While temperature switches are often associated with thermal regulation, their true value lies in their role as critical safety interlocks. When integrated with precision pressure monitoring devices like the MEOKON MD-S220 Series Differential Pressure Gauge, they form a dual-sensor safety net that prevents equipment failure, ensures air quality compliance, and protects personnel in sensitive environments such as cleanrooms, operating theaters, and pharmaceutical labs.
How Digital Temperature Switches Function in HVAC Safety Loops
A digital temperature switch acts as the “thermostat with a brain” for industrial safety. Unlike traditional mechanical bimetallic strips, digital switches utilize high-precision sensors (like PT100 or thermocouples) to monitor fluid or air temperature in real-time.
Core Working Principle:
- 1 Sensing: The probe detects the current temperature of the medium (water, oil, or air).
- 2 Processing: An internal microprocessor compares the reading against pre-set thresholds (High/Low limits).
- 3 Action: If the temperature breaches a safety limit (e.g., a chiller overheating), the switch instantly triggers a relay output to shut down the compressor or activate an alarm, preventing catastrophic failure.
The Critical Role of Differential Pressure Monitoring
While temperature controls the thermal state, pressure controls the flow state. In HVAC systems, flow is life. A blocked filter or a failing fan can lead to stagnant air, pressure imbalances, and contamination risks.
This is where the MEOKON MD-S220 Differential Pressure Gauge becomes indispensable. It monitors the pressure difference across filters, fans, or cleanroom zones.
- Filter Monitoring: A rising differential pressure indicates a clogged filter.
- Room Pressurization: Maintaining positive pressure in cleanrooms prevents outside contaminants from entering.
Synergy in Action: A Dual-Sensor Safety Strategy
The most robust HVAC safety systems combine both technologies. Here is how they work together:
- Scenario: A hospital operating room.

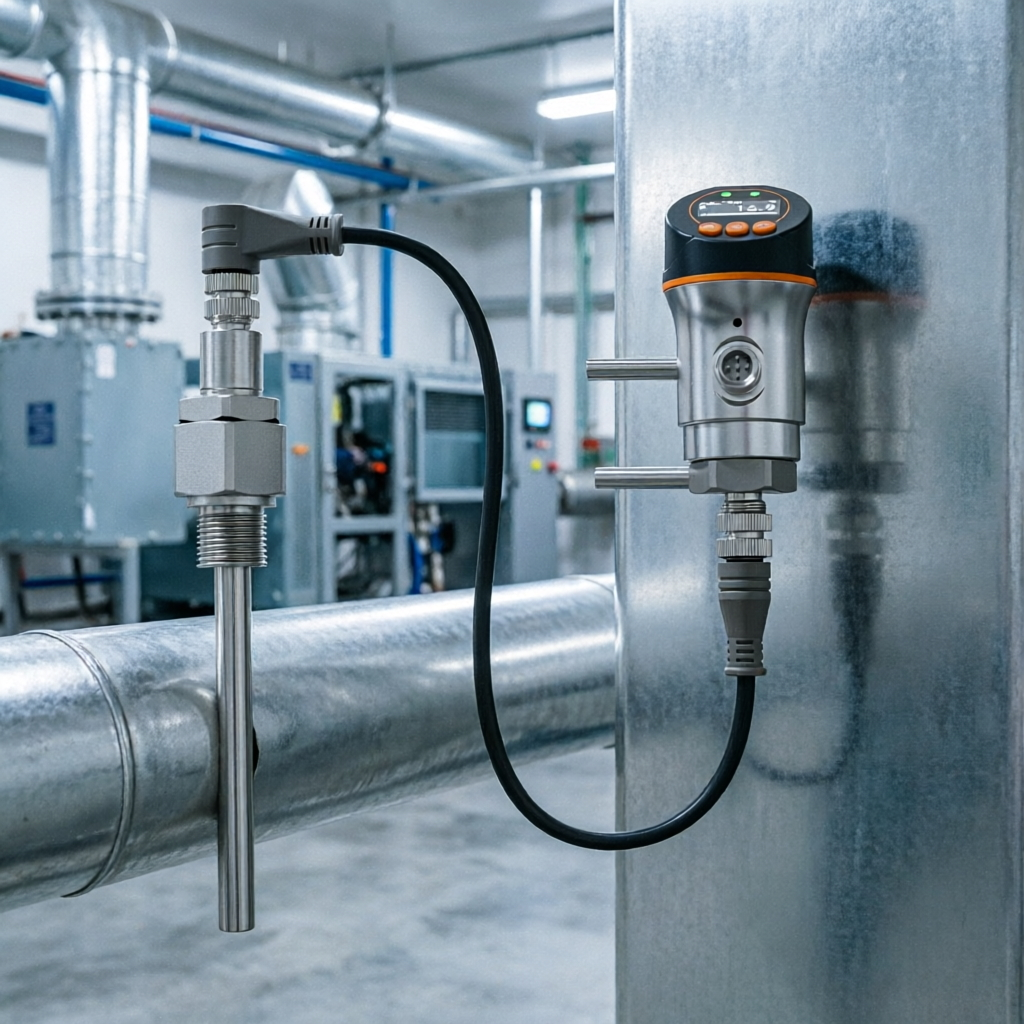

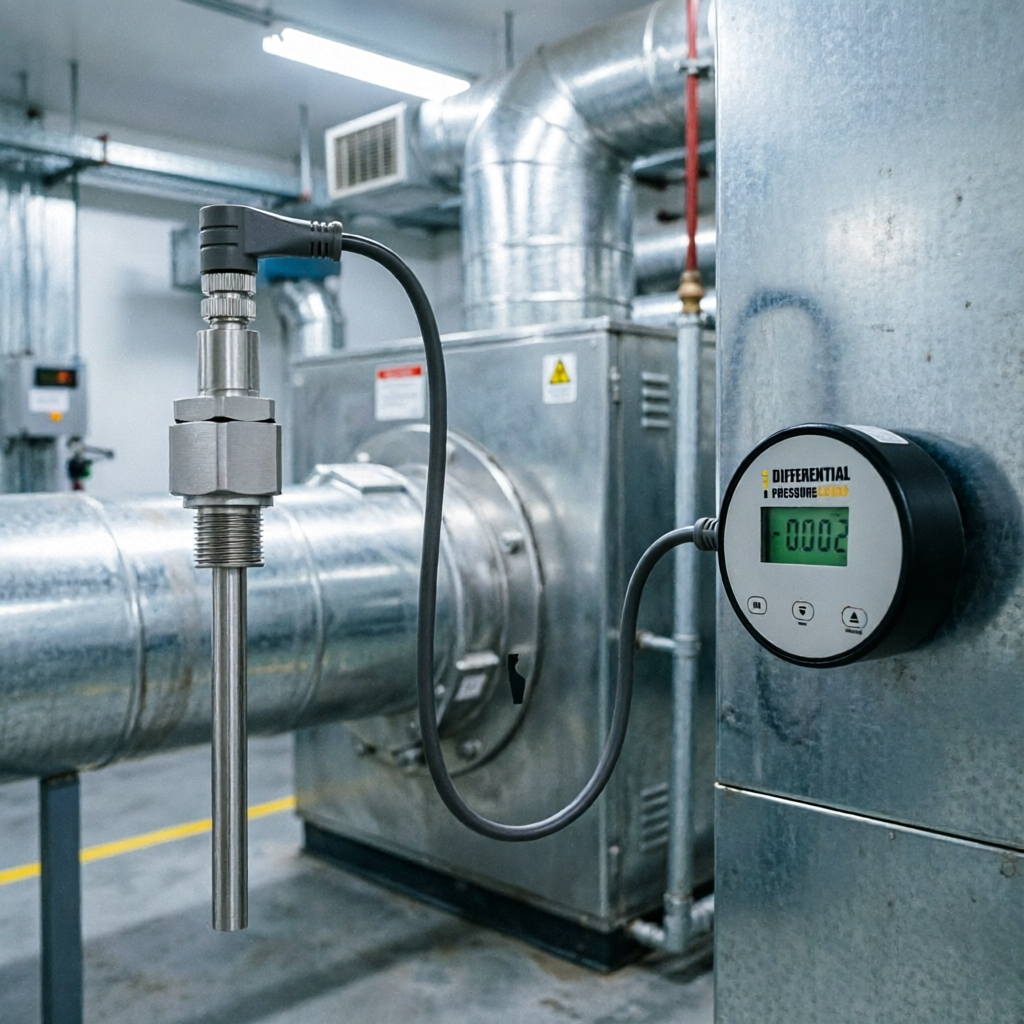

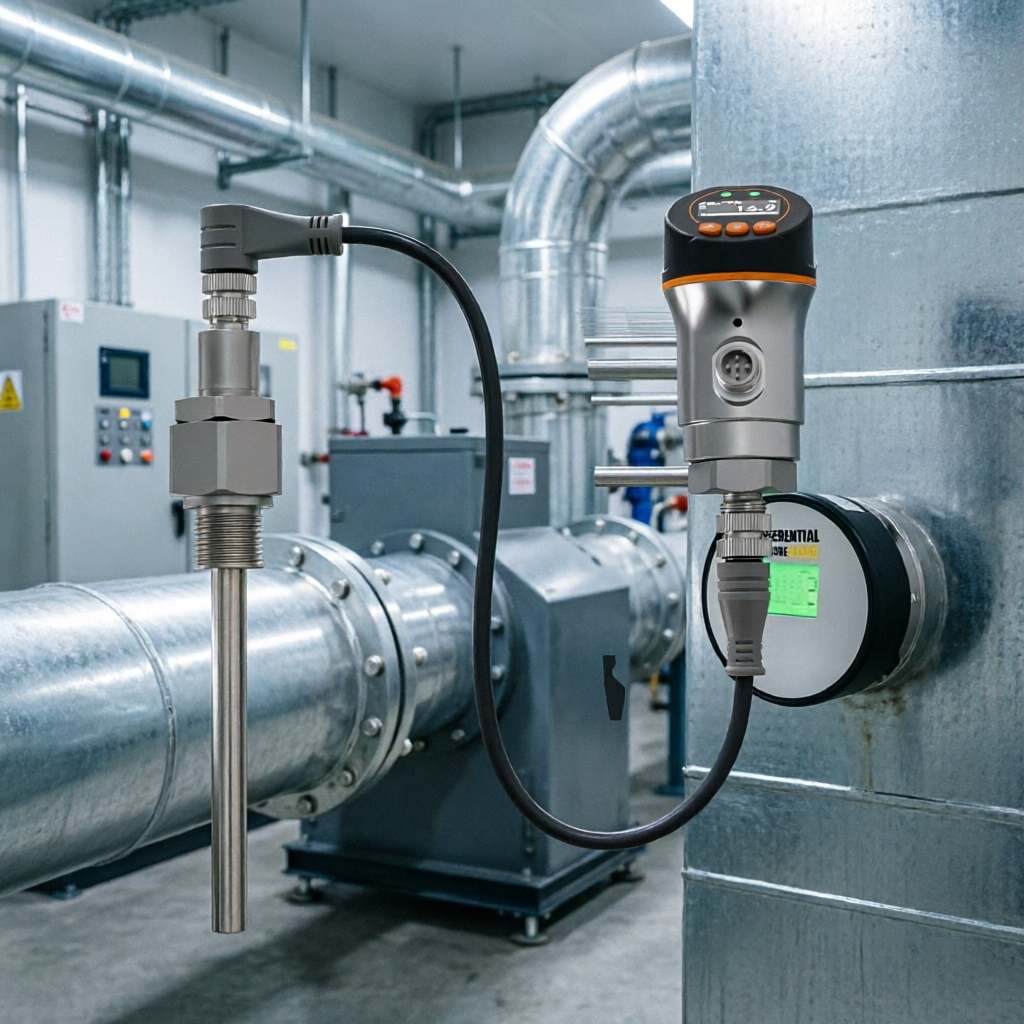

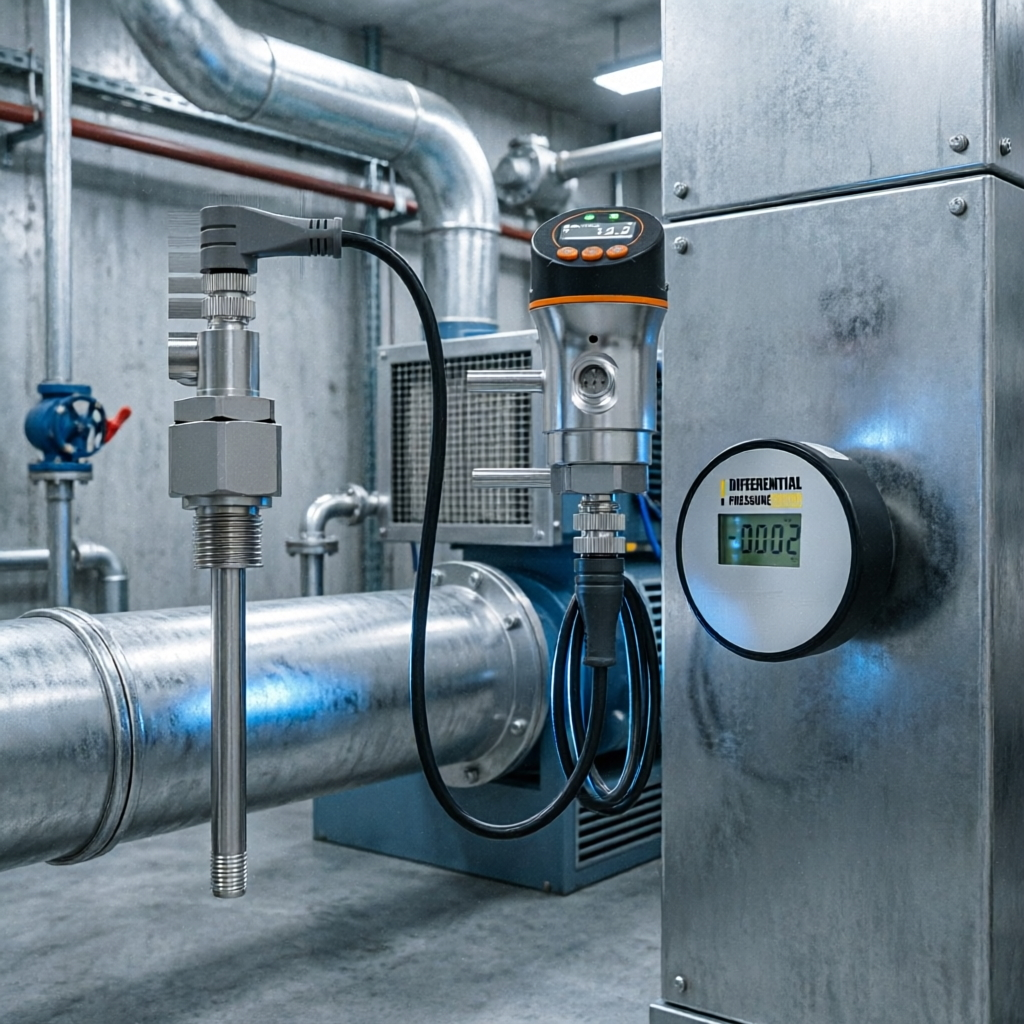

- Temperature Control: The MD-S853TF Digital Temperature Switch monitors the supply air temperature to ensure patient comfort and prevent equipment overheating. Its split-type design allows the display to be mounted on the wall for easy reading while the probe sits inside the duct.
- Pressure Control: Simultaneously, the MD-S220 Differential Pressure Gauge ensures the room maintains a positive pressure of >15Pa relative to the corridor, guaranteeing sterility.
- The Result: If the temperature spikes OR the pressure drops, the Building Management System (BMS) receives immediate signals from both devices, triggering a coordinated response (e.g., increasing fan speed or shutting down the heating coil).
Why Choose MEOKON for Your HVAC Safety Needs?
MEOKON provides integrated solutions that simplify installation and enhance reliability.
MD-S853TF Digital Temperature Switch
- Split-Type Design: Features a flexible cable connecting the probe and the display unit, allowing for installation in hard-to-reach ducts while keeping the interface accessible.
- Rotatable Display: The screen can be rotated 330° for optimal viewing angles.
- Robust Build: 304 stainless steel housing with IP65 protection, resistant to dust and water jets.
- Versatile Output: Supports PNP/NPN switch outputs and RS485 communication for seamless BMS integration.
MD-S220 Differential Pressure Gauge
- High Precision: Utilizes imported sensing elements for accurate micro-differential pressure measurement.
- Versatile Mounting: Available with surface mount brackets, flush mount brackets, or fixing foot bases to suit any panel design.
- Smart Features: Includes high/low pressure alarms and multi-unit switching (Pa, kPa, mmH2O, etc.).
- Power Options: Choose between battery-powered (2xAA) for wireless flexibility or AC/DC powered for permanent installations.
Conclusion
In the complex ecosystem of HVAC safety, relying on a single parameter is a risk. By understanding the working principles of digital temperature switches and combining them with reliable differential pressure monitoring, facility managers can ensure systems that are not only efficient but inherently safe. MEOKON’s MD-S853TF and MD-S220 series represent the gold standard in this dual-protection approach, offering the precision and durability required for today’s demanding industrial applications.
