Introduction
Pump cavitation, pipe leakage, and condensation-induced short circuits represent critical failure points in modern high-density computing environments. As IT loads increase, implementing a robust liquid cooling system monitoring strategy is no longer optional but a fundamental requirement for operational continuity. A comprehensive data center liquid cooling solution must proactively identify anomalies before they cascade into catastrophic hardware failures. This article outlines the technical architecture and practical deployment of intelligent monitoring systems designed to mitigate risks such as insufficient make-up water causing pump dry running, supply temperatures approaching the dew point, and uneven heat dissipation degrading overall energy efficiency.
Key takeaways for facility operators and technical engineers include: - Proactive Risk Mitigation: Continuous cold plate monitoring and CDU oversight prevent physical damage to IT equipment. – Edge-to-Cloud Intelligence: Integrating industrial-grade sensors with smart analytics enables predictive maintenance rather than reactive repairs. – System Longevity: Precise water quality and pressure management significantly reduce pipe and cold plate corrosion.
Technical Core of Intelligent Monitoring

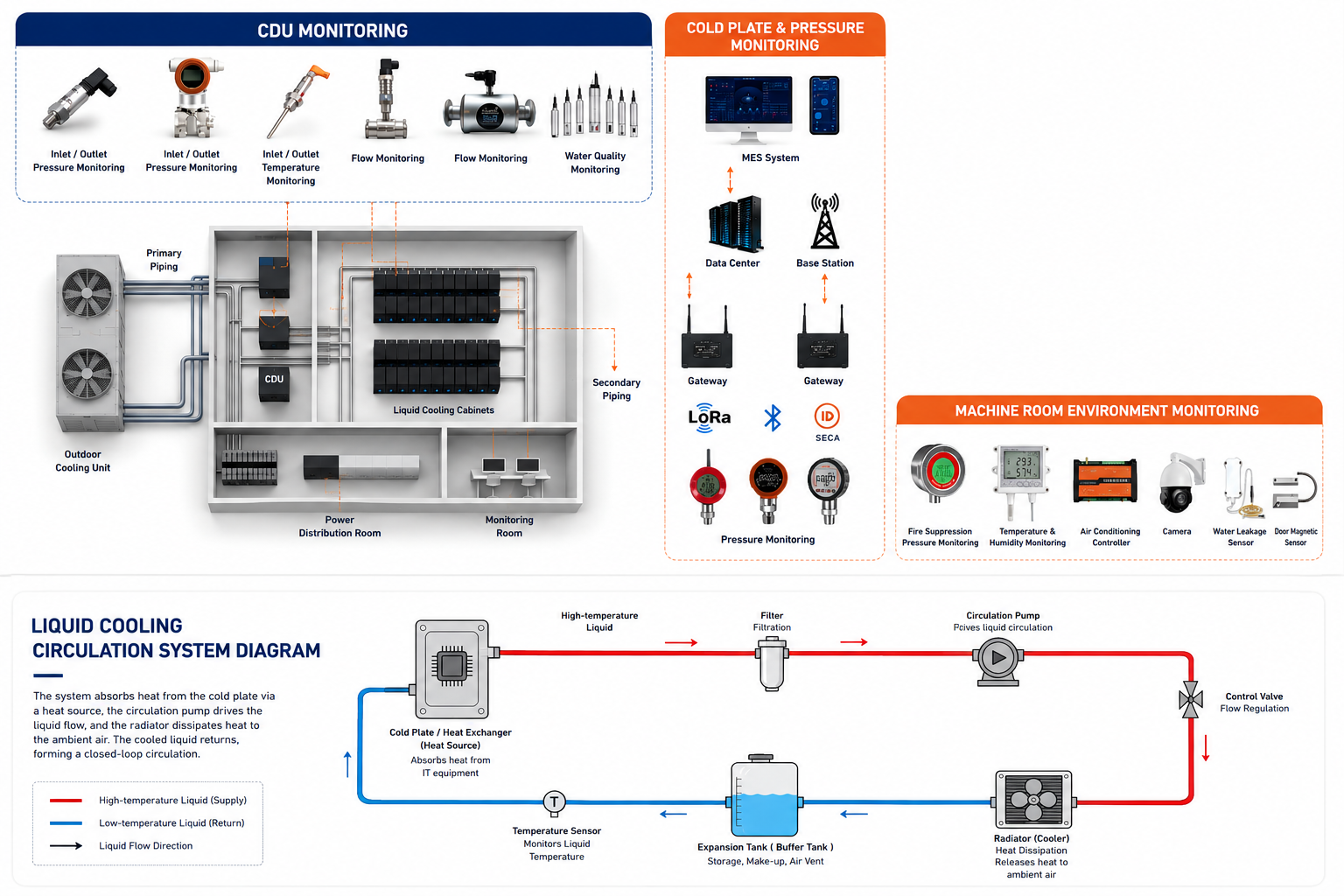

The operational integrity of a liquid cooling system relies on a layered architecture combining precise field instrumentation, reliable edge data transmission, and advanced analytical software. At the physical layer, accurate flow measurement is paramount. The MD-S455 liquid turbine flow meter, featuring a 304 stainless steel body and a 2Cr13 impeller, provides high-precision flow data essential for detecting flow starvation. For applications requiring higher electromagnetic compatibility, the MD-S451 compact electromagnetic flow meter utilizes an ARM Cortex-M4 32-bit processor and a 24-bit ADC data acquisition system to ensure stable readings even in electrically noisy data center environments.
Data aggregation requires industrial-grade reliability. The MD-S907 IoT data collection terminal supports wireless networking and dual Ethernet/Wireless network cards, offering 8DI and 8AI signal inputs to consolidate diverse sensor data. For localized control and legacy system integration, the MD-S906 edge gateway supports 4G and RS485 communication, equipped with 4-channel AC220 active signal inputs, 4 switch quantity inputs, and 4 relay outputs for direct actuator control. The analytical layer transforms raw data into actionable intelligence. The SECA handheld digital twin APP connects via Bluetooth, LoRa, or NearLink to provide real time system visualization. Its built-in intelligent analysis engine performs specialized diagnostics, including pressure-holding and leakage analysis, water-hammer analysis, system-stability evaluation, and energy-consumption profiling. This multi-dimensional trend analysis allows engineers to assess equipment health dynamically, ensuring the liquid cooling system monitoring framework operates with scientific precision rather than relying on static thresholds.
Application Scenarios and Solutions
Deploying a data center liquid cooling solution requires addressing specific operational zones. For cold plate monitoring, maintaining structural integrity under high pressure is critical. The MD-S261 intelligent digital pressure gauge, featuring a 2-inch full LCD screen, Bluetooth connectivity, and a capacity to record 1 million data points, enables engineers to capture transient pressure spikes during maintenance. For continuous oversight, the MD-S123 single-crystal silicon differential pressure transmitter, which utilizes a German-imported MEMS chip and a 4-20mA+HART output, provides highly accurate differential pressure readings essential for filter clogging detection.
CDU monitoring demands rigorous environmental and fluid tracking. The MD-K953 water quality sensor probe (IP68 rated) continuously monitors pH, conductivity, and turbidity to prevent internal corrosion. Supply and return temperatures are tracked using the MD-S311 compact temperature transmitter, which features a 316L stainless steel probe and IP65 waterproof aviation plug. To prevent condensation, the MD-S351 digital temperature and humidity sensor, with its 68x50mm large LCD screen and °C/ °F switching, ensures the dew point is never breached.
Facility-wide safety relies on comprehensive data center temperature and humidity monitoring and leak detection. The MD-A276W wireless water immersion sensor, powered by a lithium battery with an IP68 rating, provides immediate alerts in raised floor environments. System pressure is maintained using the MD-S542 digital remote pressure gauge (compliant with GB25972-2024, IP67, RS485 output) or the MD-S103 compact pressure transmitter. For manual inspections, the MD-S278 wireless digital pressure gauge offers a 330° rotating dial, Type-C power supply, and a 6-month battery life, streamlining routine checks.
| Monitoring Dimension | Traditional Manual Inspection | Mingkong Intelligent Monitoring Solution |
| Leak Detection | Reactive discovery; potential IT damage | MD-A276W wireless sensors provide instant alerts; SECA APP performs predictive leakage analysis |
| Water Quality | Periodic lab testing; delayed response | MD-K953 continuous pH/conductivity tracking prevents corrosion and scaling |
| Pressure Management | Spot checks; missed transient spikes | MD-S123/S542 continuous HART/RS485 logging captures water hammer events |
| Maintenance Cost | High labor costs; unplanned downtime | Predictive maintenance via SECA APP extends equipment lifespan by 20-30% |
To optimize system deployment, consider the following selection guidelines:
- ✅ Implement Redundant Sensing: Deploy both the MD-S455 turbine flow meter and MD-S451 electromagnetic flow meter in parallel circuits to cross-validate flow data and eliminate single-point failures.
– ✅ Standardize Connectivity: Utilize the MD S907 IoT terminal for new deployments to leverage wireless networking, while retaining MD-S906 gateways for retrofitting existing RS485-based infrastructure.
– ✅ Enforce Dew Point Margins: Integrate MD-S351 humidity data directly into the CDU control logic via the MD-S906 relay outputs to automatically adjust supply temperatures when ambient humidity rises.
- ✅ Digitize Maintenance Workflows: Mandate the use of the SECA APP for all pressure holding tests and water hammer analyses to create a standardized, auditable digital maintenance record.
Frequently Asked Questions
How does the system prevent false alarms from water hammer events? The SECA APP includes a dedicated water hammer analysis algorithm that distinguishes between normal operational pressure transients and destructive water hammer events based on pressure rise time and amplitude. This prevents unnecessary pump shutdowns while accurately logging genuine system shocks for engineering review.
Can the MD-S906 gateway integrate with existing BMS platforms?
Yes. The MD-S906 supports standard RS485 Modbus RTU protocols and 4G cloud connectivity. Its 4 relay outputs can be configured to trigger external BMS alarms or directly control backup pumps, ensuring seamless integration into existing facility management ecosystems.
What maintenance is required for the MD-K953 water quality probe?
The MD-K953 features an IP68-rated housing designed for continuous immersion. Calibration should be performed quarterly using standard buffer solutions. The probe’s self-cleaning design reduces biofilm buildup, but physical inspection and cleaning are recommended during scheduled CDU maintenance windows.
How accurate is the leak detection in raised floor environments?
The MD-A276W wireless water immersion sensor provides immediate detection upon contact with conductive liquids. Its IP68 rating ensures reliable operation even in submerged conditions, while the lithium battery provides up to 24 months of standby life, eliminating wiring complexities in raised floor plenums.
Conclusion
Effective liquid cooling system monitoring requires precision instrumentation, reliable edge computing, and intelligent analytics working in concert. By deploying solutions like the MD-S451 flow meters, MD-S907 IoT terminals, and SECA digital twin APP, facility operators can transition from reactive troubleshooting to predictive system management. This approach directly addresses critical pain points including pump cavitation, condensation risks, and corrosion, ensuring optimal performance and extended equipment life.
For data center technical engineers and procurement managers evaluating a data center liquid cooling solution, selecting the right instrumentation is the first step toward operational excellence. Contact Mingkong engineers today to request customized system schematics, technical datasheets, or evaluation samples tailored to your specific facility requirements.
