New Product Launch | All-New Integrated Temperature-Liquid Switch, Data Acquisition Terminal, and Fire Protection Data Transmission Unit

New Product Release: MD-S907P, MD-S908, MD-S853TL
MD-S853TL: Electronic Digital Display Integrated Temperature-Liquid Switch
MD-S907P: IoT Data Acquisition Terminal
MD-S908: Data Transmission Unit

One Device, Dual Measurement: Simplifying Complexity
MD-S853TL Electronic Digital Display Integrated Temperature-Liquid Switch
In hydraulic stations and lubrication systems, monitoring both tank liquid level and oil temperature is a common requirement. Traditional solutions necessitate two separate instruments, leading to higher costs for installation, wiring, and maintenance. Furthermore, a single liquid level switch or temperature switch often fails to meet complex demands such as multi-point alarms, PLC interlocking, and analog signal acquisition. These harsh industrial environments—filled with oil, vapor, dust, and vibration—place extremely high demands on product protection and data stability.


To address this, MEOKON introduces the MD-S853TL, integrating liquid level and temperature monitoring into a single device. Featuring a stainless steel housing and a plastic head with an IP67 protection rating, it supports local display of both level and temperature. With 4 switch outputs and 2 analog 4-20mA outputs, it is perfectly suited for industrial sites like hydraulic systems, lubrication systems, and machine tool automation.

• Fulfills the Integrated Monitoring Need: Hydraulic stations, lubrication systems, and machine tool tanks often require simultaneous monitoring of low liquid levels and abnormal oil temperatures. An integrated product reduces the number of instruments and installation points.
• Enhances System Integration: The combination of 4 switch outputs and 2 analog 4-20mA outputs covers various interface requirements, including PLC alarms, analog acquisition, and interlocking control.
• Expands the S853 Series: Alongside the MD-S853 pressure switch and MD-S853T temperature switch, this new model offers a highly integrated option featuring “level display + temperature display + alarm settings + analog output.”

Making Data “Visible and Tangible

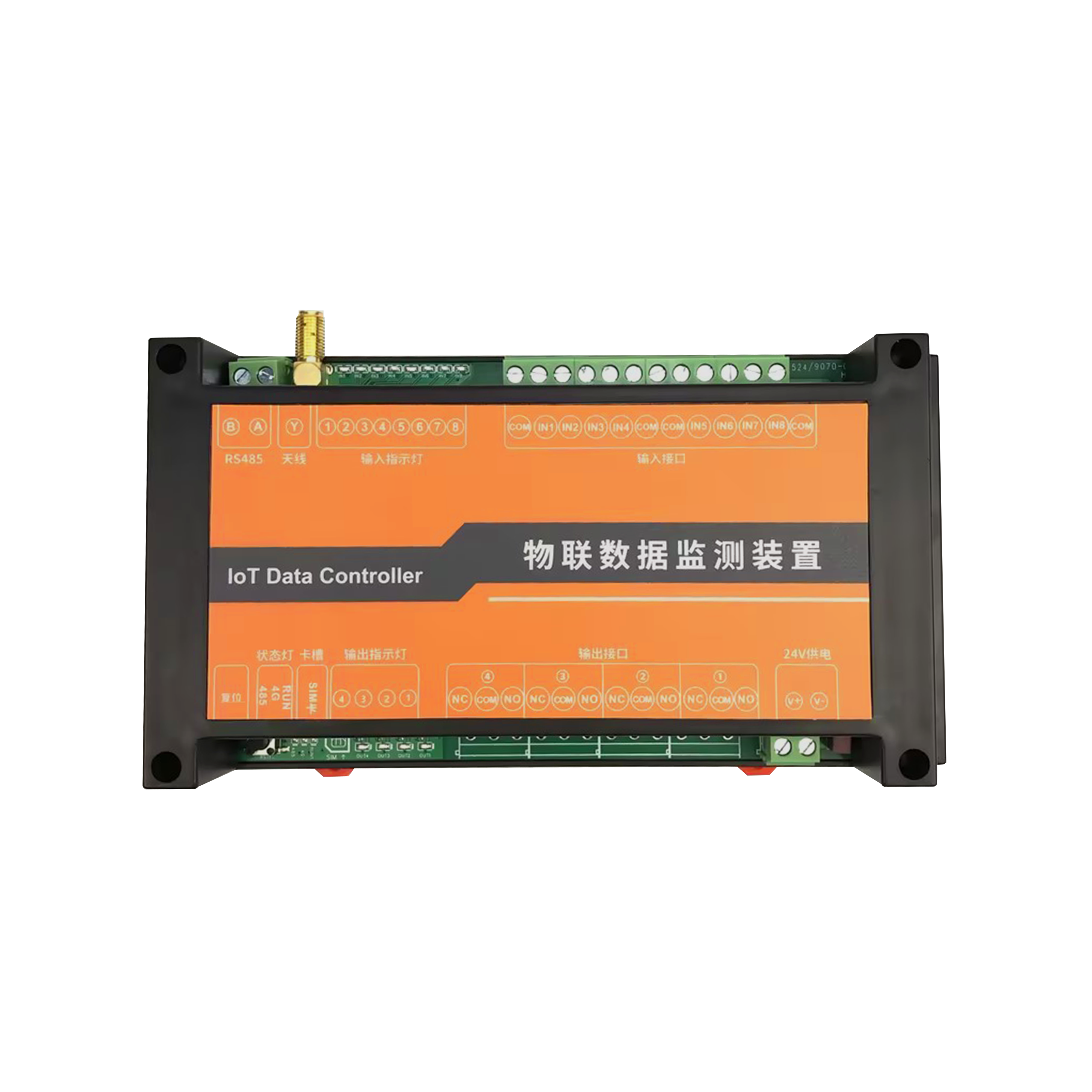

MD-S907P IoT Data Acquisition Terminal

In traditional industrial settings, the status of control cabinets is often a “black box,” leading to delayed responses and operational halts when failures occur. Issues like data gaps, monitoring blind spots, and lagging maintenance are common. The MD-S907P IoT Data Acquisition Terminal is designed to solve these pain points with highly efficient data monitoring capabilities.

1.Comprehensive Perception

With a rich array of input interfaces acting as the “nerve endings” of the industrial site, it achieves comprehensive, high-precision real-time data collection.

• 16-channel Digital Input: Includes 8 channels of AC220V powered inputs and 8 dry contact inputs, compatible with contactors and buttons to accurately monitor run, fault, and manual/auto statuses.
• 4-channel Analog Input: Supports standard 4-20mA industrial signals to accurately capture data from pressure, temperature, flow, and level sensors.

2. Wireless + Wired Redundancy: A dual-link transmission ensures data is reliably sent back even if the wireless network fluctuates or fails, creating an uninterrupted industrial-grade data highway.

• Wireless: Enables flexible deployment and rapid cloud connectivity, freeing you from wiring constraints.
• Wired (RS485): Provides a stable backup with strong anti-interference capabilities.

3. Compact Size, Powerful Core:

With dimensions of only 70×90×175mm, its compact body fits easily into standard distribution cabinets and PLC control boxes.
The high-strength, industrial-grade flame-retardant housing is dust-proof, moisture-proof, and impact-resistant, making it perfect for harsh industrial environments.
High-brightness LED indicators provide a clear view of power, operation, and communication status, simplifying on-site debugging and maintenance.
Directly supports AC220V industrial power supply, eliminating the need for extra power modules and simplifying wiring.
4. Plug-and-Play Deployment

The combination of DIN rail clips and phoenix-style terminals allows for rapid, tool-free installation and easy wiring, even in tight spaces.
5. Cloud-Enabled Intelligence

Paired with the Da Lan Mao (Big Lazy Cat) Equipment Health Management Cloud Platform, it supports remote status viewing, fault warnings, parameter debugging, and automatic report generation for predictive maintenance.
National Standard Compliance, Intelligent Fire Safety

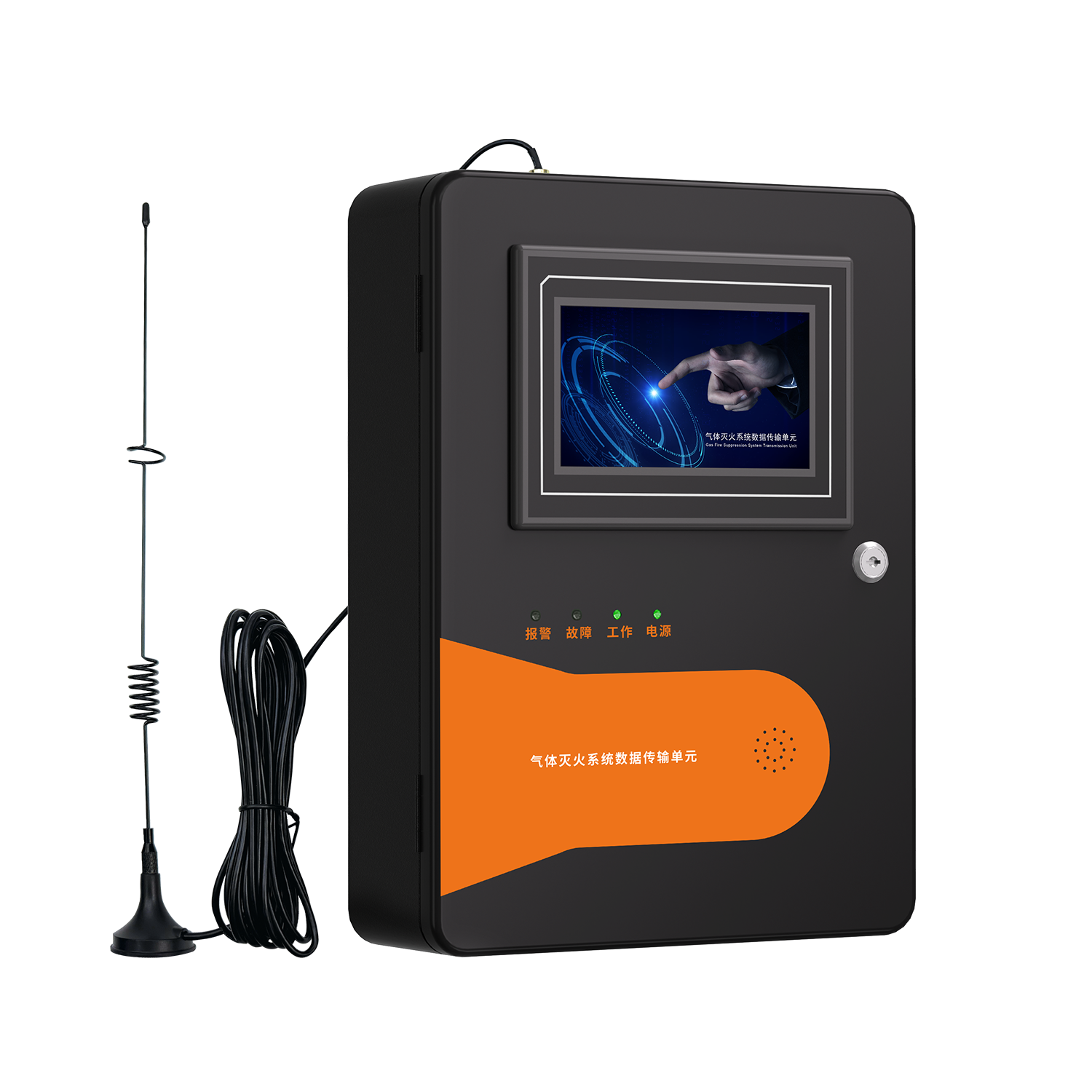

MD-S908 Data Transmission Unit
As a critical safety feature in data centers, libraries, museums, airports, and train stations, the pressure status of gas fire extinguishing cylinders is paramount to the system’s reliability. The MD-S908 is a specialized data transmission unit developed by MEOKON for IoT monitoring of these systems, fully compliant with the GB25972-2024 standard for gas extinguishing systems.


1.Fire Protection Specialist, Standard Compliant

• New Standard Compliance: Adheres to GB25972-2024, meeting all requirements.
• Hassle-Free Acceptance: Perfectly aligns with fire safety acceptance standards, mitigating the risk of project rework.
• Quality Benchmark: Industrial-grade design sets a new standard for the fire monitoring industry.
• Customizable Alarms: Flexible upper and lower limit settings adapt to high/low pressure and various pipeline network scenarios.
• Smart Reporting: A combination of scheduled reporting for stability and instant reporting for abnormalities balances real-time needs with cost.
• Traceable Event Logs: Creates a tamper-proof electronic record of all alarms, silences, and resets.

2. Stable and Reliable, Always Online

• Dual-Link Redundancy: Supports both 4G CAT1 and Industrial Ethernet, with millisecond-level automatic failover to ensure data is always transmitted.
• Dual Power Supply: Seamlessly switches between mains power and a large-capacity backup battery, ensuring 24/7 operation even during a power outage.
• Local Data Caching: An industrial-grade flash memory automatically stores data during network outages and uploads it once the connection is restored, ensuring zero data loss.

3. Powerful Acquisition, Precise Sensing

• Dual Isolated Buses: Two independent RS485 buses can connect sensors and meters from different brands and protocols simultaneously.
• Integrated Acquisition: A single device handles mixed acquisition of pressure, temperature, and digital signals, supporting mainstream protocols like MODBUS to reduce hardware costs and wiring complexity.
• High Precision & Visibility: Achieves a pressure data accuracy of 0.01MPa with no drift. A 7-inch HD TFT color screen provides clear, on-site visibility of all operational data.

The three new products are now officially available. Please contact MEOKON Sensor to learn more about product details and selection support.
