Meokon TEMPERATURE SENSOR PT100

Industrial platinum thermistors are used as temperature sensors and are usually used in conjunction with display instruments, recording instruments and electronic regulators. It can directly measure the temperature of liquid, vapor and gaseous media and solid surfaces in the range of -200℃~500℃ in various production processes. The explosion-proof structure design is suitable for explosion-proof occasions. Products have been widely used in petroleum, chemical, pharmaceutical, electric power,metallurgy, papermaking and other industries.



PARAMETER:

NAME RANGE   Output  Allowable deviation △ t ℃
PT100
Sensor
-200℃~ 500℃ PT100 /  PT1000 Class A (-50℃~300℃),Tolerance ±(0.15+0.002|t|)
Class B (-200℃~500℃),Tolerance ±(0.3+0.005|t|)

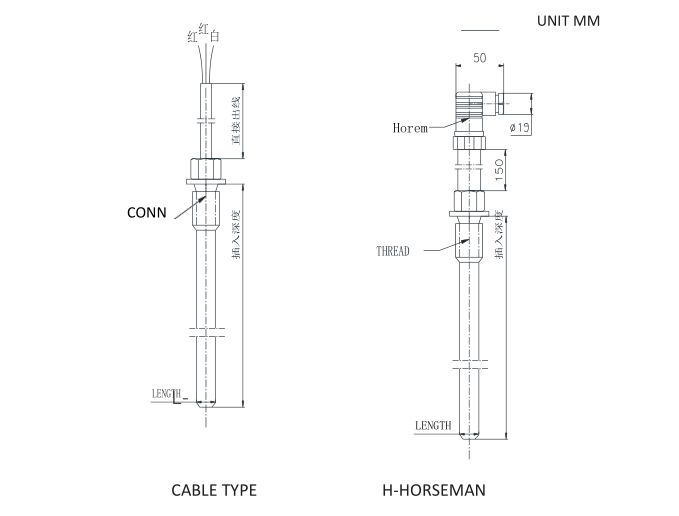

STRUCTURE:
