How are liquid-cooled server rooms monitored? A dynamic environment monitoring solution provides the answer.

As large-scale, intensive construction of liquid-cooled data centers accelerates, server rack power density surges sharply, driving up complexity in operational environment management and physical security. Even minor issues such as temperature/humidity fluctuations, fire hazards, unauthorized access, and equipment malfunctions can disrupt stable data center operation, triggering business outages and data security risks. Hence, building a multi-dimensional power & environment monitoring system covering environmental conditions, fire protection and security surveillance — one that enables real-time status perception, centralized management and intelligent early warning — has become a cornerstone for safe, stable data center operation.

Part 1

Three Core Modules of Data Center Power & Environment Monitoring
The monitoring system is built around three dimensions: environment, fire protection and security, with each module fulfilling distinct roles to deliver round-the-clock real-time monitoring against various safety risks.
Environmental Monitoring
Real-time tracking of indoor temperature and humidity distribution to maintain optimal operating conditions for IT hardware and prevent hardware failures caused by environmental volatility.
Fire Early Warning
24/7 detection of smoke concentration and pressure of gas fire suppression systems, enabling millisecond-level early fire detection and real-time status supervision of fire-fighting equipment.
Security Monitoring
Linkage between access control and video surveillance systems to strictly regulate entry authorization and trigger instant alarms for unauthorized intrusions.

Part 2

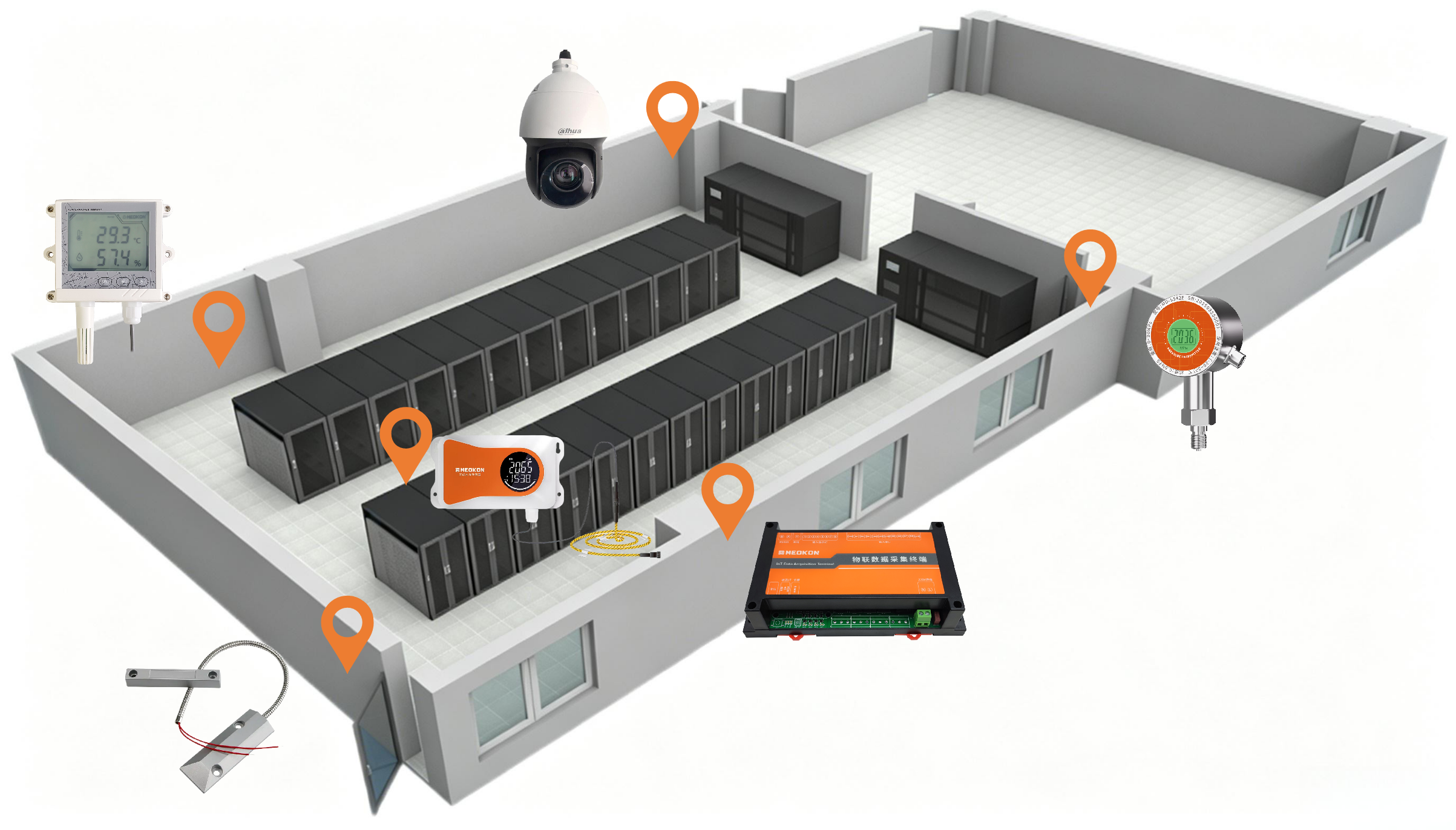

MEOKON Power & Environment Monitoring Solution for Data Centers

MEOKON  delivers an all-in-one monitoring solution covering environmental, fire and security requirements. Adopting a layered architecture with clear responsibilities for each tier, the system guarantees stable and reliable operation of the entire monitoring network.

Core Monitoring Hardware

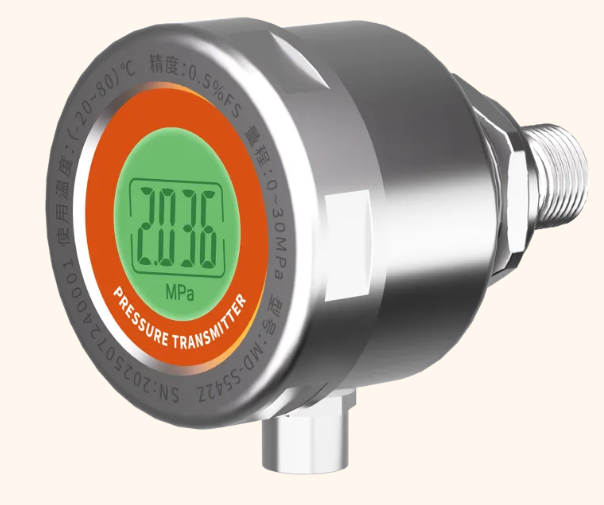

1. MD-S542 Remote Pressure Gauge

• Compliant with the new national standard GB25972-2024 for gas fire suppression systems and components
• LCD display with red/green alarm indicators
• Integrated welded structure, oil-free design eliminates leakage risks
• Anti-electromagnetic interference design for superior stability

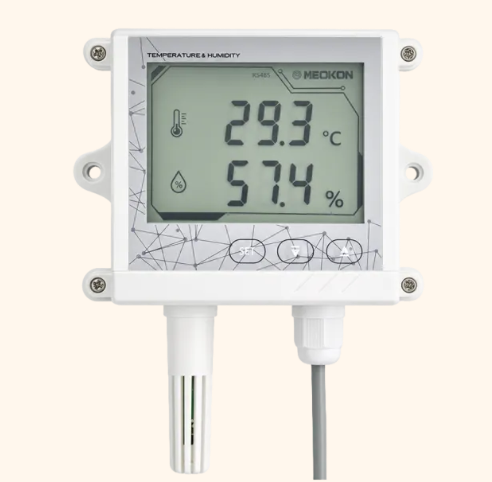

2. MD-S351 Temperature & Humidity Transmitter
   Installed inside server rooms to track ambient temperature and humidity and send early warnings for abnormal shifts.

• Dual output options: 4-20mA analog / RS485 digital
• Large 68×50mm LCD display
• Isolated output for strong anti-interference performance
• Imported high-precision sensing chip for rapid response to temperature and humidity changes

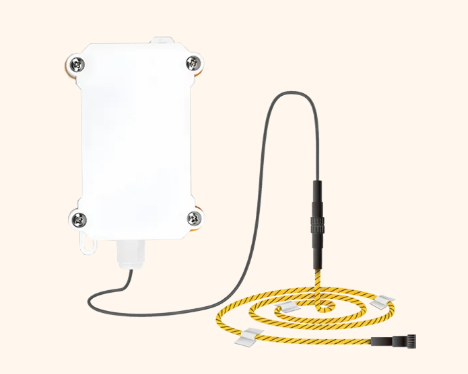

3. MD-A276W Water Leak Detection Cable Sensor
   Mounted on server room floors to mitigate risks of equipment damage, data loss and electrical hazards from water leakage.

• Magnetic switch for power on/off
• Large-capacity lithium battery for long service life
• Complete mounting brackets and accessories for quick installation
• IP68 ingress protection for harsh industrial environments

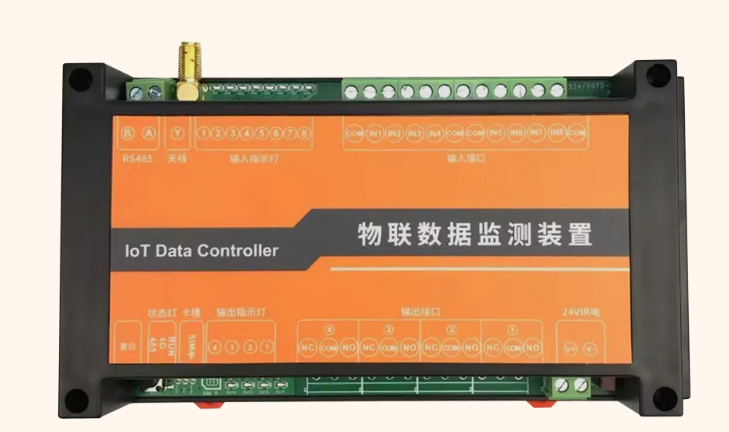

4. MD-S907 IoT Monitoring Controller


   Connects to precision air conditioners to monitor operational parameters and support remote switch control.

• 4-channel control with multi-channel feedback for remote operation
• Dual communication: 4G cellular + RS485 wired
• DIN rail mounting clip for fast installation
• Status indicator lights for intuitive equipment operation visibility

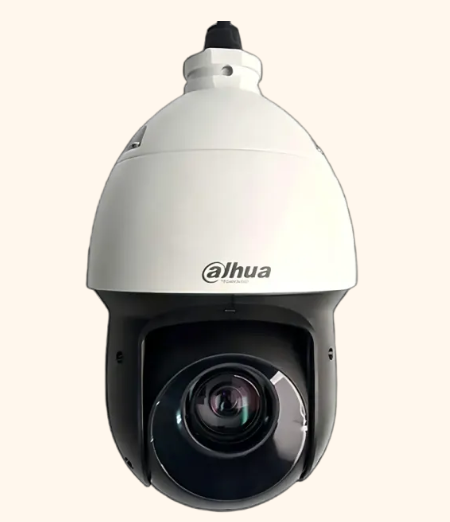

5. Surveillance Cameras
   Deployed throughout the server room to assist anomaly detection and enable remote visual verification of alarms.


5.

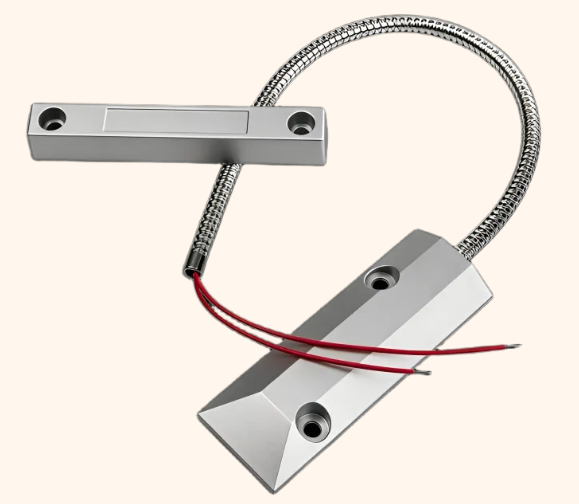

6. Access Control Sensors
   Installed at all entry points to block unauthorized personnel from accessing critical zones.


1. Data Acquisition Layer


   Accesses a full suite of power & environment monitoring sensors. Data converges via standard RS485 wired buses to ensure low-latency transmission of critical alerts including environmental anomalies and equipment faults.

2. Network Transmission Layer


   Stable wired networking built on RS485, whose strong anti-interference capability meets the core real-time and stability demands of data center monitoring.

3. Data Application Layer


   Aggregated data is synchronized to a cloud platform for multi-dimensional storage and analysis. Key functions include large-screen visualized monitoring, mobile remote alarms and remote management portals, allowing O&M staff to respond rapidly to faults.
