Engineered for Oil-Free Operation and Long Life, These Seven Diaphragm Pumps Offer Tailored Solutions for Diverse OEM Applications
In the intricate world of OEM design, selecting the right core component can define a product’s success. MEOKON SENSOR TECHNOLOGY (SHANGHAI) CO., LTD, a specialist in miniature air pump technology, addresses this critical need with its high-performance MK-PC series of hydraulic and pheumatic pressure pumps. This curated lineup of seven models provides engineers and designers with a spectrum of choices, each optimized for specific pressure, flow, and form factor requirements across medical, analytical, industrial, and consumer applications.
Renowned for their oil-free operation, exceptional durability, and low power consumption, these pumps ensure media purity and offer a maintenance-free lifespan, making them a reliable and cost-effective solution for global markets. Let’s explore the distinct capabilities of each model to guide your selection process.

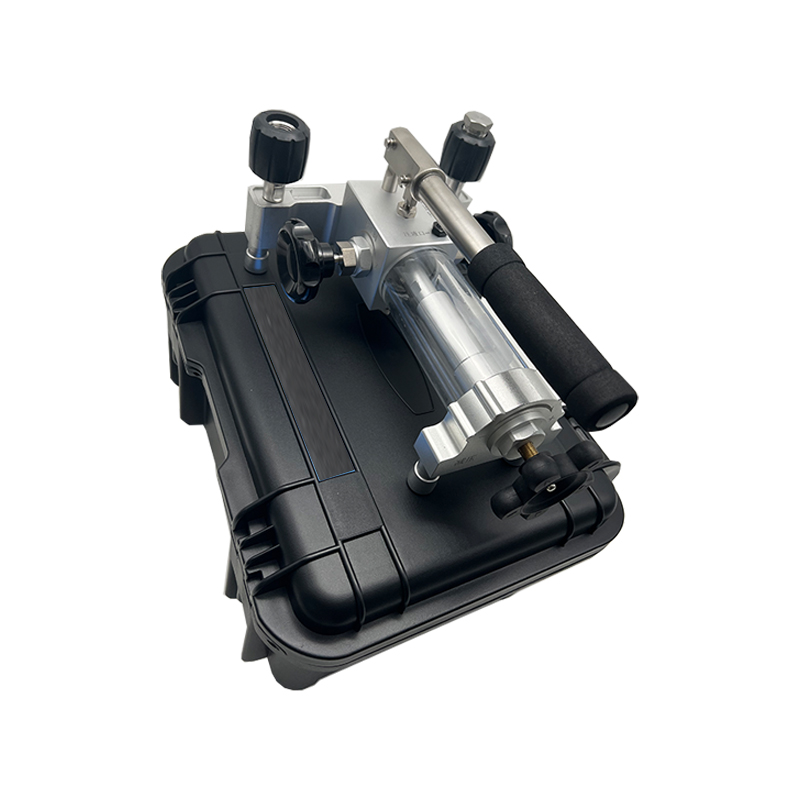

- Hydraulic Pressure Test Pump
- Media: Mineral oil or deionized water.
- Generated Pressure Range:0-700bar
- Connection:Hand-tight connectors for both test gauge and reference gauge.M20X1.5 female or customized

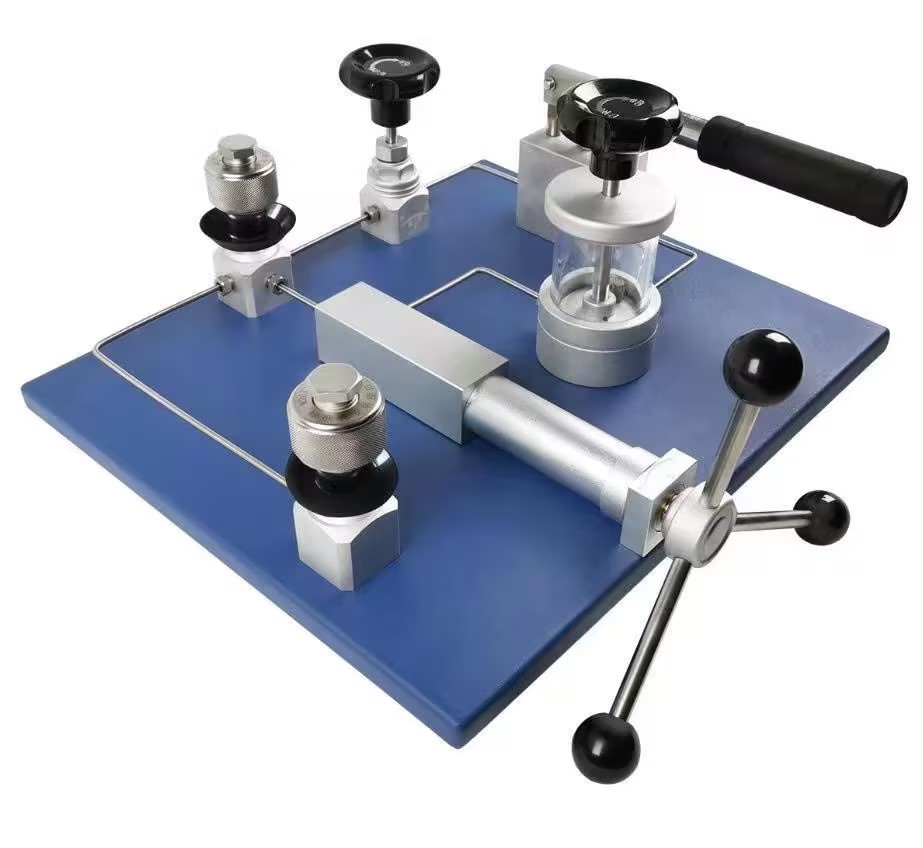

2. MK-PC102 Hydraulic comparison test pump
- Pressure measuring medium: water and oil
- pure water or special oil (choose one of two) Use temperature: 0 ~ 50 ºC
- Dimensions: 375x290x205 (length × width × height)
- Instrument weight: 5.24 kg
- Pressure range: 0 ~ 1 0 / 1 6 / 2 5 / 4 0 / 6 0MPa
- Instrument weight: 5.24 kg
- Pressure range: 0 ~ 1 0 / 1 6 / 2 5 / 4 0 / 6 0MPa

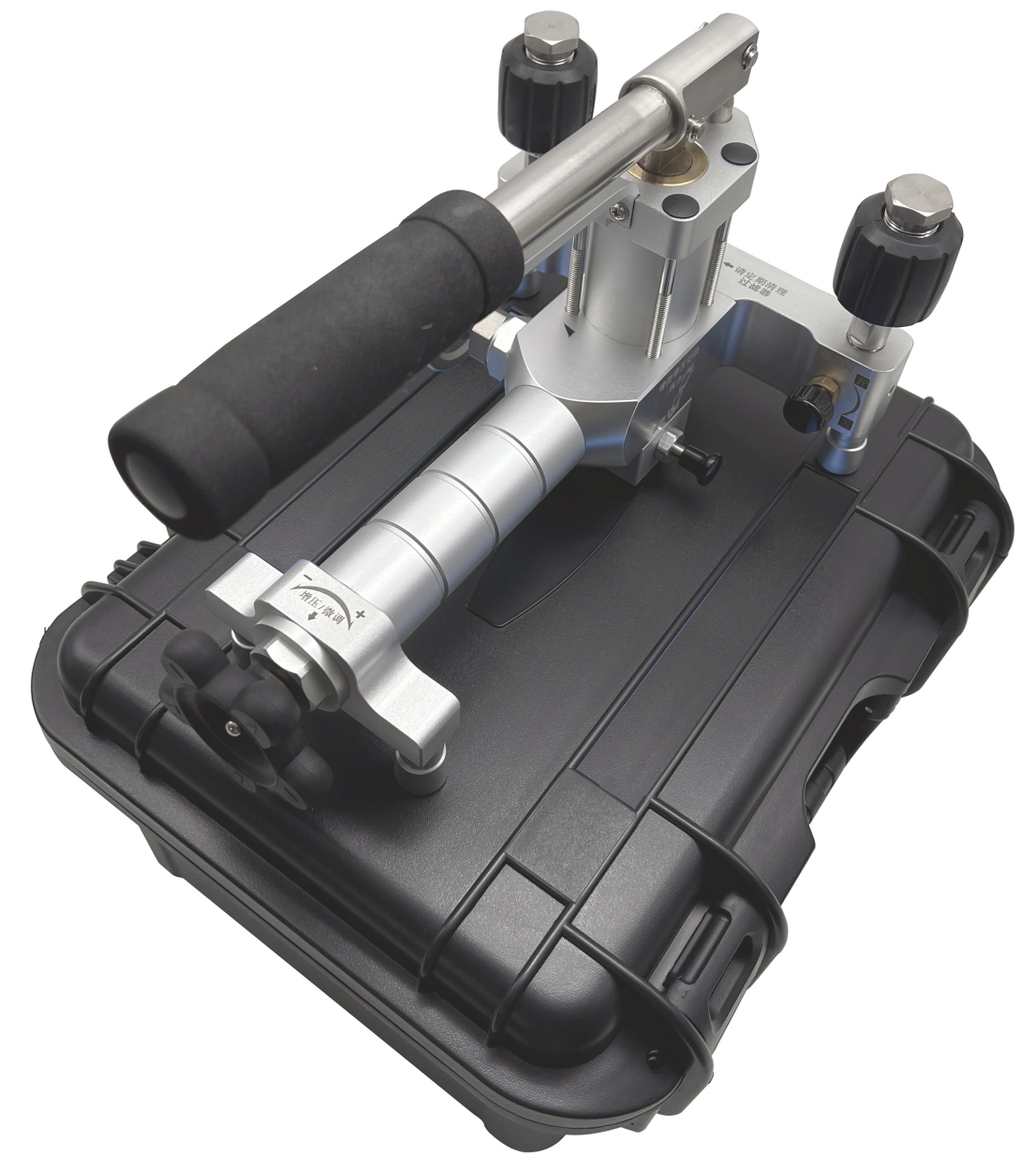

3. MK-PC103 Portable Pneumatic Pressure Test / Calibration Pumps -0.95-100bar
- Pressure measuring medium: Clean air (clean and non corrosive gas)
- Service temperature: 0 ~ 50 ºC
- Overall dimension: 305×210×180
- Instrument weight: 3.58kg
- Pressure range: -0.95-100bar

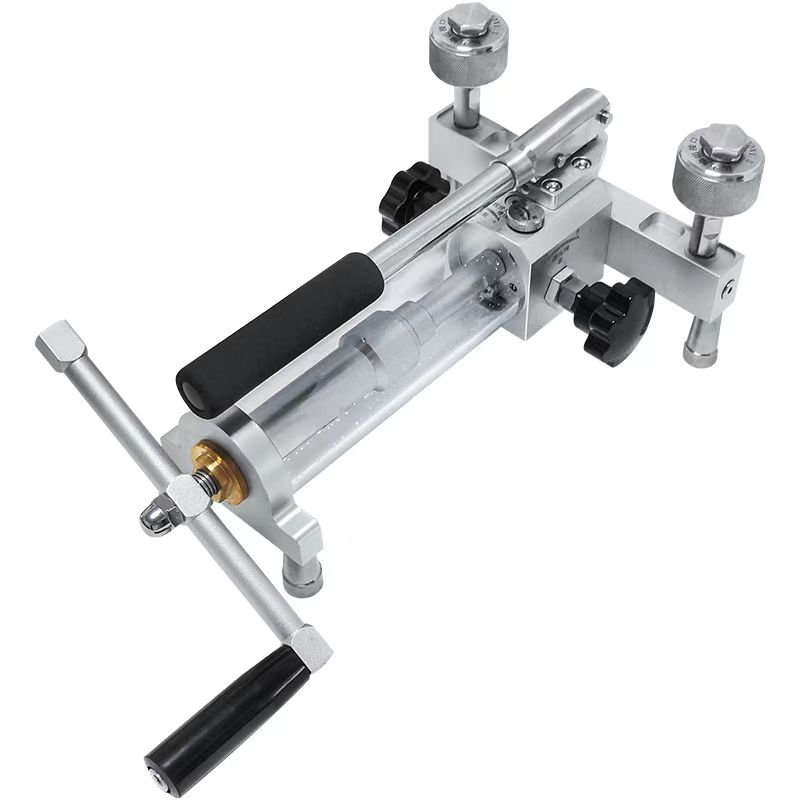

4. MK-PC104 0-1000bar Portable Pressure Calibration Pump
- Pressure range：0～1000bar
- Regulating fineness：min 1KPa
- Output port：2
- Pressure connection：Quick connect threadM(20*1.5)
- Ambient temperature：0~50℃
- Weight：3.9kg
- Medium：Water/Oil
- External dimensions：395×215×155mm

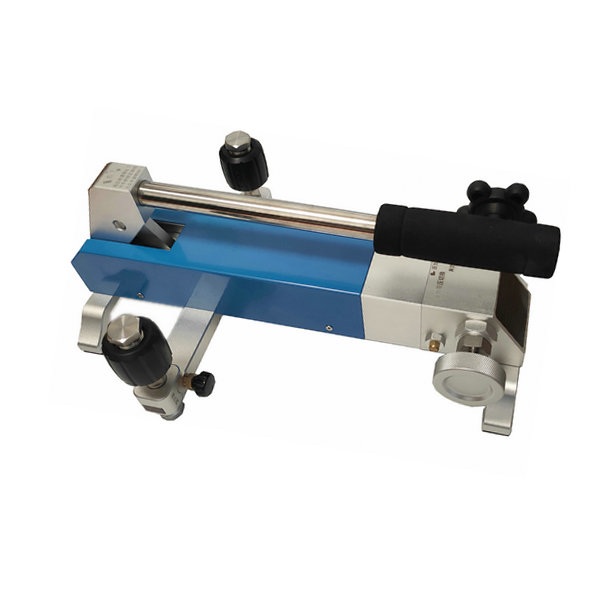

5. Meokon MK-PC105: The Dual-Head Precision Pump
- Pneumatic Pressure Test Pump
- Range: -0.95～160bar
- Stability: 0.025%
- Pressure interface: M20 × 1.5 (two pressure output interfaces)
- Occurring pressure: -95kpa-2.5Mpa,-95kpa-4Mpa,-95kpa-6Mpa,-95kpa~8MPa,-95kpa~10MPa,-95kpa~12 MPa,-95kpa~14MPa,-95kpa～16）MPa
- pressure range: 0-60MPa (each gear)
- pressure medium: purified water
- adjustment sensitivity: Min 1kPa
- overall dimension: 420x385x20 (L × w × h)
- weight: 7.22kg
7. MK-PC107.Pheumatic pressure pump 0-0.7Mpa 0-7bar 0-1000psi
- Pressure measuring medium: clean air (clean and non corrosive gas)
- Operating temperature: 0-50 ℃
- External size: 300×210×175(long × wide × High)
- Instrument weight: 3.44kg
- Pressure range: -0.095 ～ 0.6/0.8/1 MPa
Meokon’s MK-PC series is more than just a product line; it’s a toolkit for innovation. By offering a range of pumps with carefully graduated performance characteristics, Meokon empowers global OEMs to find the perfect pneumatic component, ensuring efficiency, reliability, and cost-effectiveness in their final products.
Post time: Nov-27-2025
